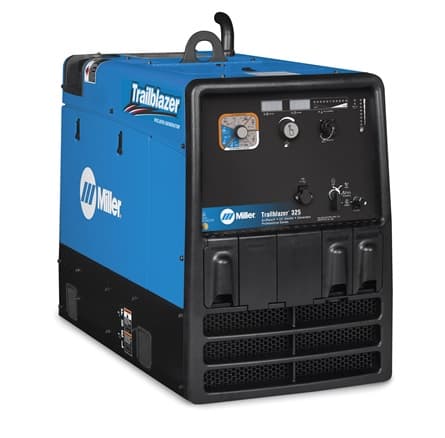

907797 - Miller Trailblazer 325 Kohler Gas Welder Generator

Packaging: 1 PER EA
$14,506.34/ea $13,036.95/1 PER EA only $13,036.95/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

Unbeatable Performance for the Professional Welder

The Miller Trailblazer 325 is built to keep you welding longer, quieter, and more profitably. If you are looking for the smoothest, most stable arc in the industry, this machine delivers. Whether you are running Stick, MIG, or Flux-cored wire, the Trailblazer 325 offers wide amperage output and precise arc control, allowing you to fine-tune your puddle exactly how you like it. The independent generator power means your grinder or lights won't cause your arc to sputter, ensuring consistent weld quality every time you strike an arc.

One of the biggest advantages for daily use is the Auto-Speed™ technology. Unlike other welders that roar at full throttle all day, the Trailblazer 325 automatically idles down when you aren't welding or running heavy loads. This means a drastically quieter jobsite—so you can actually hear your coworkers—and significantly fewer trips to the gas pump. With a 12-gallon tank and intelligent engine management, you spend more time burning rods and less time refilling fuel cans. The compact footprint also leaves you more room in your truck for other essential tools and gear.

Safety and convenience are maximized with built-in ArcReach® technology. When paired with compatible accessories, you can adjust your voltage and amperage right from where you are welding, without needing extra control cables. This saves you countless trips back and forth to the truck, especially when working on large structures or in difficult-to-reach areas. The Trailblazer 325 isn't just a power source; it's a productivity tool designed to make your workday smoother and more efficient.

Additional Information
Brand:Miller
Amperage:325
Weld Process:Multi-Process, Engine Drive
Duty Cycle:100%
Engine Brand:Kohler
Horsepower:23.5 hp
Fuel Type:Gasoline
Fuel Tank Size:12 Gallon
Generator Peak Power:12000 W
Generator Continuous Power:10500 W
Sound Rating:70 dB @ idle, 81.5 dB @ weld
Net Weight:486 lbs
Dimensions:28 in (H) x 20 in (W) x 40.5 in (L)
Carbon Diameter Rating:3/16 in (Rated), 1/4 in (Capable)
Packaging Description:1 PER EA
Voltage:n/a

INCLUDED

  • Miller Trailblazer 325 (Kohler) Engine-Driven Welder
  • Owner's Manual

APPLICATIONS

  • Structural Steel Fabrication
  • Maintenance and Repair
  • Mobile Fabrication
  • Pipe Welding
  • Sheet Metal Work
  • Construction Infrastructure

FAQ

The Trailblazer 325 provides up to 325 amps of welding power, suitable for Stick, MIG, Flux-cored, and DC TIG welding processes.

No, this specific SKU (907797) is the standard Kohler model. Excel Power is an optional feature available on other configurations (e.g., 907798002).

Auto-Speed technology automatically adjusts the engine RPM to match the load requirements, rather than running at max speed constantly. This reduces noise, fuel consumption, and engine wear.

It delivers 12,000 watts of peak power and 10,500 watts of continuous power, which is independent of the weld output.

Yes, ArcReach technology is standard, allowing for remote parameter control via existing weld cables when used with compatible accessories.

This model (907797) is powered by a gasoline Kohler engine. It is a carbureted model, not EFI.

The sound rating is 70 dB at idle and 81.5 dB at weld speed, making it one of the quieter machines in its class.

The net dimensions are 28 inches high, 20 inches wide, and 40.5 inches long. The net weight is 486 lbs.

CATALOGUE & SPEC SHEETS

Spec Sheet
