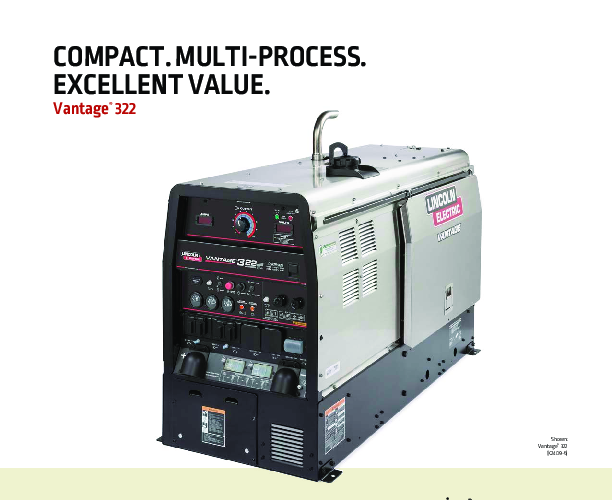

Take your welding operations anywhere with the Lincoln Electric Vantage 322 (Kubota) Ready-Pak 3. This pre-assembled package takes the guesswork out of setting up a mobile welding rig by pairing the high-performance Vantage 322 welder/generator with a durable K2636-1 trailer, complete with fenders, lights, and a cable rack. Whether you are working on a remote pipeline, a structural steel erection site, or a heavy equipment repair yard, this machine delivers the reliability and output you need to get the job done right.
Multi-Process Versatility
The Vantage 322 is a true multi-process workhorse. It pumps out up to 400 amps of DC welding current, making it suitable for a vast array of applications including Stick, TIG, MIG, Flux-Cored, and Gouging. Thanks to Lincoln's Chopper Technology, you get a "soft" arc for stick welding and a "crisp" arc for pipe welding, ensuring high-quality results with less effort. The machine is rated for 100% duty cycle at 300 amps (IEC) and can push up to 400 amps at 100% duty cycle (Max rating), giving you the thermal headroom to weld continuously without overheating.
Reliable Kubota Power
Powered by a rugged 22 HP Kubota V1505 diesel engine, this welder is built for longevity. The engine is water-cooled and naturally aspirated, running at a low 1800 RPM to reduce noise and wear. It meets strict EPA Tier 4 Final emission standards without sacrificing power. The stainless steel roof and side panels provide excellent corrosion resistance, ensuring your investment looks and performs like new for years, even in tough outdoor weather conditions.
Auxiliary Power for the Job Site
Don't just weld—power your entire site. The Vantage 322 generates 11,000 watts of 3-phase AC power and 10,000 watts of 1-phase AC power. This means you can run lights, grinders, inverter welders, or plasma cutters directly from the machine. The Ready-Pak 3 configuration ensures you are road-ready immediately, with a trailer designed specifically for the weight and balance of the welder. With a 20-gallon fuel tank, you can stay focused on the work, not the fuel gauge.
| Additional Information |
|---|
| Amps (amps):400 |
| Brand (brand):Lincoln |
| Duty Cycle (duty Cycle):100 |
| Weld Process (weld Process):Engine Drive |
| Watts (watts):11000 |
| Packaging Description (packaging Description):1 of each |
| Process Type:Multi-Process, Stick, TIG, MIG, Flux-Cored, Gouging |
| Engine Model:Kubota V1505 Diesel |
| Engine Horsepower:22 HP |
| Auxiliary Power:11 kW (3-Phase), 10 kW (1-Phase) |
| Fuel Tank Capacity:20 Gallons |
| Output Range:30-400A DC |
| Dimensions (with Trailer):53.9 in x 57 in x 111 in |
| Net Weight:1417 lbs (643 kg) |
| Packaging Description:1 Per Ea |
| Weld Process:Engine Drive |
| Brand:Lincoln Electric |
| Voltage:n/a |
| Amperage:n/a |
| Duty Cycle:N/A |
| Watts:n/a |
