907731 - Miller XMT 350 FieldPro Polarity Reversing Multi-Process Welder (Tweco)

Packaging: 1 PER EA
$14,883.02/ea $13,438.00/1 PER EA only $13,438.00/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

Stop Walking, Start Welding

Time is money on the job site, and the Miller XMT 350 FieldPro Polarity Reversing Welder is built to save you both. If you've ever had to climb down five stories of scaffolding just to swap your leads from DCEP to DCEN, you know the struggle. This machine fixes that. With built-in Polarity Reversing, you can switch from burning Stick electrodes to running TIG or MIG without ever touching the power source. Just hit the button on your ArcReach feeder or remote, and the machine handles the switch internally. No more cable clutter, no more wasted trips, and no more downtime.

Total Control at the Arc

The XMT 350 FieldPro puts the control where it belongs: in your hands. Thanks to ArcReach technology, your wire feeder or remote communicates with the power source right through the weld cables. You can adjust your voltage and amperage, and even switch processes, from hundreds of feet away. The Adjust While Welding (AWW) feature lets you fine-tune your heat while you're laying a bead, giving you the precision you need for critical X-ray quality welds. Plus, with Cable Length Compensation, the machine automatically boosts the output to make up for voltage drop over long leads, so the heat you set is the heat you get.

Built for the Grind

This isn't a shop toy; it's a field warrior. Weighing in at just 93 pounds, it's easy to haul around the site. It runs on practically any power you can find, from 208V to 575V, thanks to Auto-Line. The Wind Tunnel Technology keeps the guts of the machine clean by blowing air through a dedicated tunnel, not over the circuit boards, so grinding dust and dirt won't kill your welder. Whether you are gouging with 5/16" carbons or running RMD on open roots, the XMT 350 FieldPro with Tweco connectors is ready to work as hard as you do.

Additional Information
Brand:Miller
Amperage:350
Voltage:200-600 V
Weld Process:Multi-Process
Duty Cycle:60%
Phase:1- and 3-Phase
Process Type:Multi-Process, MIG (GMAW), Stick (SMAW), TIG (GTAW), Flux-cored (FCAW), Air Carbon Arc Gouging (CAC-A)
Input Voltage:208-575 V
Amperage Range:15 A - 425 A
Net Weight:93 lb
Output Connection:Tweco
Warranty Period:3 Years
Portability:Handle, Lift Eye
Carbon Diameter Capacity:1/4 in (6.4 mm), 5/16 in (7.9 mm)
Packaging Description:1 PER EA

INCLUDED

  • Miller XMT 350 FieldPro Power Source (Polarity Reversing)
  • Tweco-style weld cable receptacles
  • Owner's Manual

APPLICATIONS

  • Shipbuilding: Ideal for multi-process requirements where operators frequently switch between Stick and MIG/Flux-Cored.
  • Structural Steel Construction: Enhances safety and productivity by reducing trips to the power source in high-rise environments.
  • Pipeline Construction: Perfect for open root welding using RMD and switching to fill/cap passes without cable changes.
  • Heavy Fabrication: Supports continuous operation with high duty cycles and robust environmental protection.
  • Maintenance & Repair (MRO): Versatile input power and portability make it suitable for plant shutdowns and field repairs.

FAQ

Polarity Reversing allows the power source to automatically switch output polarity (e.g., from DC+ to DC-) based on the selected process at the remote or feeder. This eliminates the need to manually disconnect and swap weld cables at the machine.

No, it uses ArcReach technology to communicate control signals through the standard welding leads (weld cables), eliminating the need for fragile and expensive multi-pin control cords.

It features Auto-Line technology, allowing it to operate on any input voltage from 208 to 575 Volts, single-phase or three-phase, 50 or 60 Hz, without manual linking.

Yes, the XMT 350 FieldPro is rated for air carbon arc cutting and gouging with carbons up to 5/16 inch (7.9 mm) in diameter.

This specific model (SKU 907731) comes equipped with Tweco-style weld cable receptacles.

Yes, to utilize the ArcReach, Polarity Reversing, and Adjust While Welding features, you must pair this power source with an ArcReach-compatible wire feeder or remote (such as the ArcReach SuitCase or Smart Feeder).

CLC automatically adjusts the voltage output to compensate for the voltage drop that occurs over long weld cables, ensuring the voltage at the arc matches the setting on the display.

Yes, it weighs approximately 93 lbs and features a compact design with a handle and lift eye, making it suitable for moving around job sites.

CATALOGUE & SPEC SHEETS

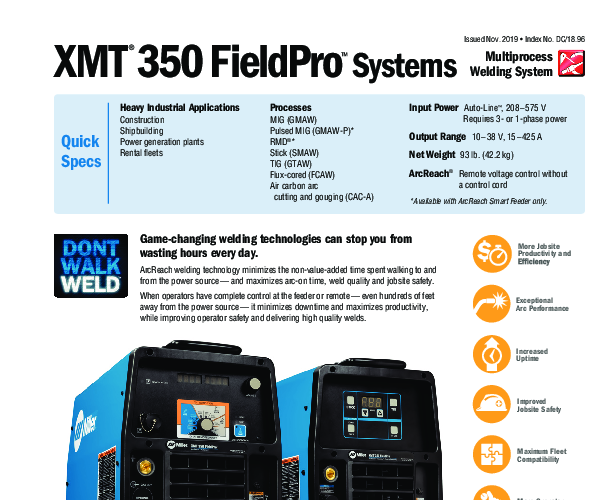

Spec Sheet
