907731002 - Miller XMT 350 FieldPro Polarity Reversing Multiprocess Welder 907731002

Packaging: 1 PER EA
$15,330.18/ea $13,843.00/1 PER EA only $13,843.00/eaSave 10%

Usually ships within 3-5 business days

OVERVIEW

Revolutionize Your Workflow with the Miller XMT 350 FieldPro

Stop wasting time walking back to your power source. The Miller XMT® 350 FieldPro™ with Polarity Reversing is designed to keep you welding, not walking. This game-changing multiprocess welder completely eliminates the need to manually swap weld cables when switching between MIG, TIG, and Stick processes. Thanks to Quick-Select™ technology, the machine automatically detects the required process and adjusts the polarity for you. Whether you are working on a pipeline or a high-rise structure, this feature alone can save hours of downtime over the course of a project.

The XMT 350 FieldPro is fully equipped with ArcReach® technology, giving you total control of your weld parameters right at the feeder or remote. Forget about fragile and expensive control cables that get tangled or cut on the jobsite; ArcReach sends signals through your existing weld leads. This means you can adjust your voltage or amperage hundreds of feet away from the machine. Features like Adjust While Welding (AWW™) let you fine-tune your settings without extinguishing the arc, giving you the precision needed for critical welds. Plus, with Cable Length Compensation (CLC™), the machine automatically accounts for voltage drop, so the heat you set is the heat you get, regardless of cable length.

Built for the real world, the XMT 350 FieldPro is tough and versatile. It runs on almost any power you can find, from 208V to 575V, thanks to Auto-Line™ technology. Weighing just 93 pounds and protected by a durable aluminum case, it is easy to move around the site. The inclusion of Dinse® connectors ensures a solid, twist-lock connection that handles high amperage without overheating. If you are looking for a welder that combines top-tier performance with features that actually make your life easier, the Miller XMT 350 FieldPro is the ultimate choice for the modern professional.

Additional Information
Brand:Miller
Amperage:350
Voltage:208/230/460/575 V
Weld Process:Multi-Process
Duty Cycle:60%
Packaging Description:1 Per Ea
Process Type:MIG (GMAW), Stick (SMAW), TIG (GTAW), Flux-cored (FCAW), Air Carbon Arc Gouging (CAC-A)
Input Voltage / Phase:208-575 V, 1-Phase, 3-Phase
Amperage Range:15 A - 425 A
Dimensions:17.00 in (H) x 12.50 in (W) x 24.00 in (L)
Weight:93 lb
Warranty Period:3 Years
Portability:Handle(s), Optional Cart
Compliance Certifications:CSA Certificate of Compliance 70178380

INCLUDED

  • Miller XMT® 350 FieldPro™ Polarity Reversing Power Source
  • (2) Male Dinse® cable connectors
  • Owner's Manual

APPLICATIONS

  • Pipeline Construction
  • Shipbuilding and Marine Repair
  • Heavy Equipment Manufacturing
  • Structural Steel Fabrication
  • Mechanical Contracting
  • Maintenance and Repair (MRO)
  • Pressure Vessel Fabrication

FAQ

Polarity Reversing allows the machine to automatically switch between DCEN and DCEP based on the selected process, eliminating the need to manually swap weld cables.

No, when paired with ArcReach accessories, it communicates control signals through the welding leads, eliminating the need for separate control cords.

It features Auto-Line technology, accepting any input voltage from 208 to 575 VAC, single- or three-phase, 50/60 Hz.

CLC automatically adjusts the output voltage to compensate for voltage drop across long weld cables, ensuring the set voltage matches the actual arc voltage.

Yes, the XMT 350 FieldPro is rated for carbon arc gouging with carbons up to 5/16 inch in diameter.

This model (907731002) uses Dinse® style weld disconnects for secure and efficient cable connections.

Yes, it works with standard feeders, but ArcReach benefits (remote control without cords) are only available when paired with ArcReach-compatible feeders.

The machine provides an amperage range of 15 A to 425 A.

CATALOGUE & SPEC SHEETS

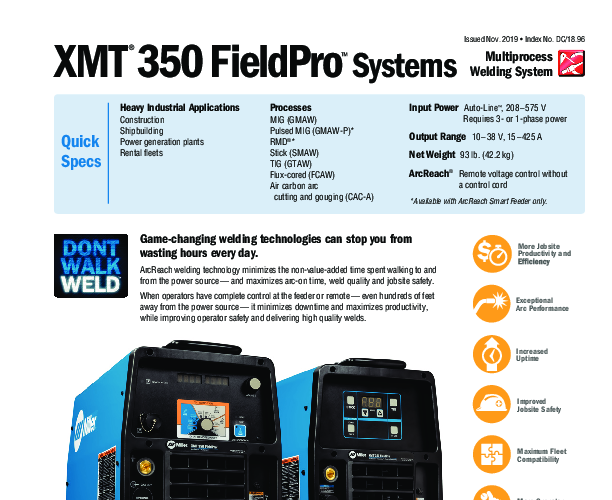

Spec Sheet
