Lincoln SuperGlaze 4043 Aluminum TIG Rod 1/8" (3.2mm) - 10lb Carton

$18.24/lb $114.00/10lb tube only $11.40/lbSave 37%

Usually ships within 3-5 business days

OVERVIEW

Precision Aluminum Welding with SuperGlaze 4043

For welders who demand control and aesthetics in their aluminum TIG work, the Lincoln SuperGlaze® 4043 rod is a staple consumable. This 1/8" (3.2mm) filler rod is formulated with silicon to create a "soft" arc and a fluid puddle that wets out smoothly at the toes of the weld. This makes it exceptionally forgiving to use, especially when bridging gaps or working on complex geometries like bicycle frames and automotive components. Unlike 5356, which can be stiffer, 4043 flows easily, allowing you to create that classic "stack of dimes" look with less effort.

One of the standout features of the SuperGlaze line is the embossed alloy identification. We've all been there—picking up a loose rod from the bench and wondering if it's 4043 or 5356. With Lincoln's embossing, you can identify the alloy instantly, even if the rod has been removed from the box. This simple feature saves time and eliminates the guesswork that can lead to weld failures. The rod is also manufactured to minimize surface oxides and contaminants, meaning you spend less time cleaning and more time welding.

This 10 lb carton provides a substantial supply for serious fabrication projects. It is the go-to choice for welding 6061-T6 components, automotive parts, and general aluminum repairs where high strength and crack resistance are required. While it is not recommended for parts that will be anodized for color match (as it turns dark gray), its weldability and finish quality make it the top choice for most general purpose aluminum TIG applications.

Additional Information
Brand:Lincoln Electric
Aws Spec:ER4043
Diameter:3.2mm (1/8")
Packaging:10 lb Tube
Weld Process:TIG (GTAW)
Polarity:AC
Position:All Position
Material Composition:Aluminum Silicon (AlSi5)
Rod Length:36 in (914 mm)
AWS Classification:R4043, AWS A5.10
Alloy Type:4043
Country Of Origin:Canada
Packaging Description:10lb tube

INCLUDED

  • (1) 10 lb Carton of SuperGlaze® 4043 TIG Rods (1/8 in / 3.2mm diameter)

APPLICATIONS

  • Bicycle frames and tubular structures
  • Automotive components and heat exchangers
  • Pressure vessels and tanks
  • General fabrication of 6061 and 6XXX series alloys
  • Welding 5052 sheet metal
  • Repair of weldable aluminum castings

FAQ

It is generally recommended for welding 5052, any 6XXX series alloys (like 6061), and weldable castings.

Yes, the alloy grade is embossed on each rod end for easy identification, preventing mix-ups.

These rods are 1/8 inch (3.2 mm) in diameter and 36 inches (914 mm) in length.

4043 contains silicon, which provides better wetting action, fluidity, and reduced crack sensitivity compared to 5356. However, 5356 is stronger and better for color matching if anodizing.

You can, but 4043 will turn a dark gray color after anodizing. If color match is critical, 5356 is usually preferred.

100% Argon is the standard gas for TIG welding aluminum. For thicker sections, an Argon/Helium mix can be used to increase heat input.

4043 is generally not recommended for service temperatures above 150°F (65°C) if sustained loads are involved, but it is excellent for general fabrication.

CATALOGUE & SPEC SHEETS

Spec Sheet

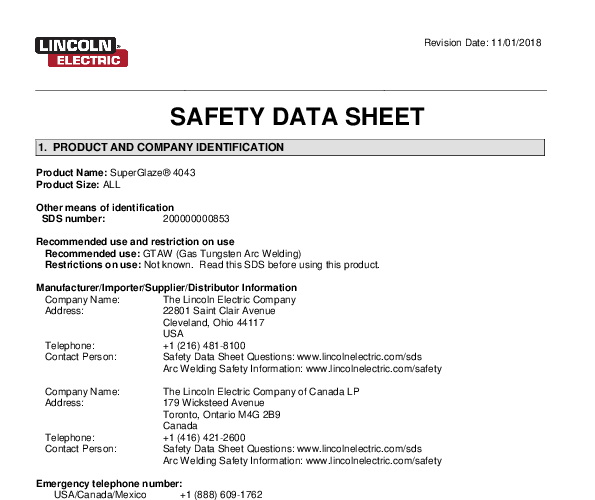

Safety Data Sheet
