181516R15A - ESAB OK Tigrod 5356 Aluminum TIG Filler Rod 1.6mm 5kg

Packaging: 5kg tube
$48.60/kg $145.60/5kg tube only $29.12/kgSave 40%

20 Still in Stock!

OVERVIEW

Shop Talk: Why You Want ESAB 5356 Rods

If you are TIG welding aluminum and need a rod that feeds smoothly and holds up to real-world abuse, the ESAB OK Tigrod 5356 is your go-to filler. This 1.6mm rod is perfect for those intricate jobs where you need fine control over the puddle but still want enough metal deposition to move quickly. One of the first things you'll notice is that 5356 is stiffer than 4043. That extra stiffness means the rod doesn't bend or noodle around in your hand as you are feeding it into the puddle, giving you way better control, especially when you are wearing heavy gloves.

This is the rod you grab when strength matters. If you are welding up a boat hull, a bicycle frame, or a custom intake manifold, 5356 gives you a weld that is tough and corrosion-resistant. It is widely known as the "marine grade" filler for a reason—it stands up to saltwater way better than other alloys. Plus, if you are planning to anodize your part after welding, this rod is a must. It won't turn that ugly charcoal black color that 4043 does; it stays bright and matches your base metal much better.

ESAB cleans these rods exceptionally well at the factory. That means when you strike an arc, you aren't fighting dirty contaminants that cause popping or porosity. You get a smooth, creamy puddle that wets out nicely. While it doesn't flow quite as wet as 4043, the bead profile is usually nicer and easier to stack dimes with once you get the rhythm. This 5kg tube is a solid shop supply size, keeping your rods straight and dry until you're ready to burn them.

Additional Information
Brand:ESAB
AWS Spec:ER5356
Diameter:1.6mm (1/16")
Packaging Description:5kg tube
Weld Process:TIG (GTAW)
Polarity:AC
Position:All Position
Material Composition:Aluminum Magnesium Alloy
Alloy:5356
Shielding Gas Requirement:100% Argon, Argon/Helium Mixtures
Tensile Strength:265 MPa (Typical)
Approvals:CWB, ABS, DB, TÜV
Packaging:10 lb Tube

INCLUDED

  • 1 x 5kg Tube of ESAB OK Tigrod 5356 Aluminum TIG Rods (1.6mm diameter)

APPLICATIONS

  • Automotive bumpers and supports
  • Marine fabrication (boat hulls, superstructures)
  • Structural aluminum frames
  • Bicycle frames
  • Pressure vessels and storage tanks
  • Aerospace components
  • General fabrication of 5000 and 6000 series aluminum

FAQ

ER5356 is an aluminum-magnesium alloy with higher shear strength and better corrosion resistance, while ER4043 is an aluminum-silicon alloy that is softer, flows wetter, and is less prone to cracking but weaker.

Yes, ER5356 is commonly used to weld 6061. It provides higher joint strength than 4043, although 4043 is sometimes preferred for its crack resistance in very constrained joints.

100% Argon is the standard shielding gas. For thicker sections, an Argon/Helium mix can be used to increase heat input.

Yes, ER5356 is the preferred choice for parts that will be anodized, as it provides a good color match to the base metal. ER4043 will turn black after anodizing.

Aluminum TIG welding is performed using Alternating Current (AC) to provide the necessary cleaning action to break up the surface oxide layer.

The magnesium content increases the column strength of the alloy, making the rod stiffer. This makes it easier to feed by hand without the rod bending excessively.

Store in a clean, dry environment with low humidity. Keep the tube closed when not in use to prevent dust and hydrocarbon contamination.

Generally, no. ER4043 is usually better for cast aluminum (like A356) due to its high silicon content which matches the casting better.

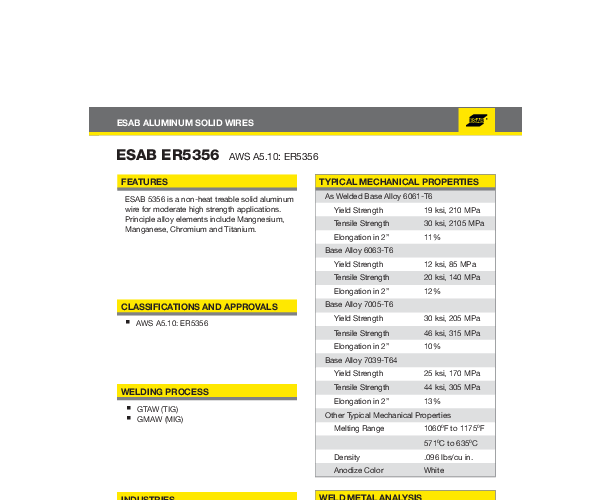

CATALOGUE & SPEC SHEETS

Spec Sheet
