Hobart Sterling AP 309L-16 Stainless Stick Electrode 3/32" 5lb

$38.90/lb $291.75/15lb can only $19.45/lbSave 50%

Usually ships within 3-5 business days

OVERVIEW

Master Dissimilar Welds with Hobart Sterling AP 309L

Every welder knows the headache of trying to join a piece of stainless steel to a mild steel bracket or frame. Using the wrong rod leads to cracking and weld failure. Enter the Hobart Sterling AP 309/309L—your go-to problem solver for mixed-metal fabrication and repair. This stick electrode is specifically engineered to handle the dilution of different base metals, creating a strong, ductile, and crack-resistant bond that stands the test of time.

Why "AP" Matters: Most stainless rods run great flat but turn into a dripping mess when you try to weld vertically. Hobart's "Sterling AP" (All Position) formula changes the game. It features a fast-freezing slag that supports the puddle in vertical-up and overhead welds, giving you the control you need to lay down professional beads out of position. The arc is buttery smooth, soft, and stable, reducing operator fatigue during long welding sessions.

Clean and Professional Results: Nobody likes chipping stubborn slag. The Sterling AP 309L features excellent slag release—often curling up and falling off on its own as it cools. The resulting bead is flat to slightly convex with a bright, clean appearance that looks great and performs even better. With its extra-low carbon content, you also get superior resistance to corrosion, ensuring your repairs hold up in harsh environments like food processing plants, chemical facilities, or general industrial sites.

This 5lb can of 3/32" rods is the perfect size for your truck or shop cabinet, ensuring you always have the right solution on hand for those unexpected dissimilar metal jobs.

Additional Information
Brand:Hobart
Diameter:2.5mm (3/32")
Grade:309, 309L
Packaging:5 lb Can
Weld Process:Stick (SMAW)
Polarity:AC/DCEP
AWS Spec:E309L-16
Rod Type:Stick Electrode
Coating Type:Rutile / Titania
Welding Position:All Position
Core Material:Stainless Steel
Applications:Dissimilar Metal Joining, Buffer Layers, Cladding
Packaging Description:15lb can

INCLUDED

  • 5 lb Can of Hobart Sterling AP 309/309L Stick Electrodes (3/32" Diameter)
  • Instruction Label

APPLICATIONS

  • Dissimilar Metal Joining: Welding stainless steel (304, 309, 316) to mild or low-alloy carbon steel.
  • Buffer Layers: Applying a first pass on carbon steel before cladding with 308L or other stainless alloys.
  • Petrochemical & Power Generation: Maintenance repairs in high-temperature environments requiring oxidation resistance.
  • Food & Beverage: Fabrication and repair of stainless steel equipment where smooth bead appearance is critical.
  • General Fabrication: All-position welding of 309 type stainless steels in sheet metal or structural forms.

FAQ

309L electrodes are primarily used for welding dissimilar metals, such as joining stainless steel to mild steel, or for applying a buffer layer on carbon steel before welding with 308L.

'AP' stands for All Position. This indicates that the electrode is formulated with a fast-freezing slag system that allows for easier welding in vertical and overhead positions compared to standard stainless rods.

Yes, Hobart Sterling AP 309/309L is designed to operate smoothly on both AC (Alternating Current) and DCEP (Direct Current Electrode Positive).

For a 3/32" diameter rod, the typical amperage range is between 45 and 80 Amps, depending on the material thickness and welding position.

The low carbon content (0.04% max) prevents carbide precipitation at the grain boundaries during welding, which significantly reduces the risk of intergranular corrosion in the heat-affected zone.

Stainless steel electrodes can absorb moisture. Once opened, they should be stored in a rod oven at 250°F-300°F (120°C-150°C) to maintain optimal performance and prevent porosity.

While it can weld 304 to 304, a 308L electrode is typically the better match for that application. 309L is best reserved for dissimilar joints or 309 base metals.

This product meets the requirements for AWS A5.4, classification E309-16 and E309L-16.

CATALOGUE & SPEC SHEETS

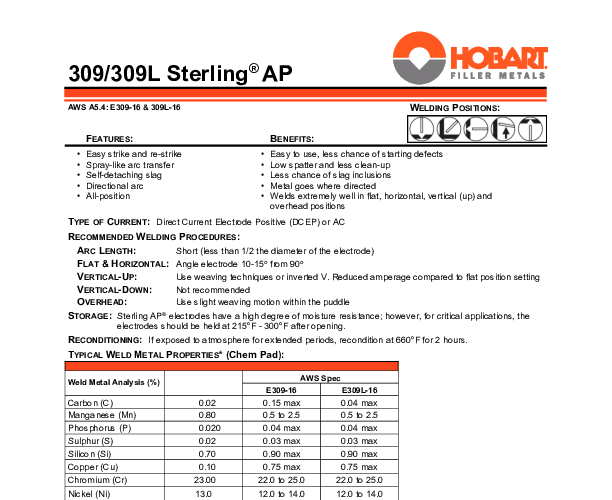

Spec Sheet

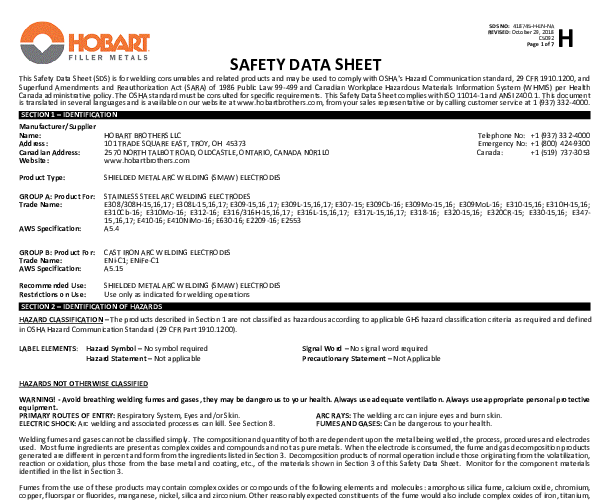

Safety Data Sheet
