S482944-032 - Hobart Sterling AP 316/316L Stainless Steel Stick Electrode - 1/8 Inch

Packaging: 18lb can
$41.34/lb $372.24/18lb can only $20.68/lbSave 50%

Usually ships within 3-5 business days

OVERVIEW

Hobart Sterling AP 316/316L: The Welder's Choice for Stainless

When you need a stainless steel stick rod that runs as smoothly as it looks, the Hobart Sterling AP 316/316L is the answer. Designed with the professional welder in mind, this 1/8-inch electrode takes the headache out of welding stainless steel. Whether you are repairing a tank in a brewery, fabricating piping for a chemical plant, or fixing kitchen equipment, this rod delivers a buttery-smooth arc that stays stable even in awkward positions. The "AP" stands for All Position, and it lives up to the name—giving you excellent control whether you are welding flat, horizontal, or vertical-up.

One of the biggest challenges with stainless stick welding is slag removal, but the Sterling AP makes it easy. The slag often curls up and peels off on its own as it cools, leaving behind a shiny, clean weld bead that requires minimal grinding or wire brushing. This means you spend less time cleaning and more time welding. The bead profile is flat to slightly convex, blending perfectly into the base metal for a professional finish that your customers will appreciate.

This electrode is compatible with both AC and DC welders, making it a versatile addition to any job site or shop. It is specifically formulated for 316 and 316L stainless steels, providing the corrosion resistance needed for harsh environments. If you are looking for a rod that combines industrial-strength durability with ease of use, the Hobart Sterling AP 316/316L is the tool for the job.

Additional Information
Brand:Hobart
Diameter:3.2mm (1/8")
Grade:316
Weld Process:Stick (SMAW)
Polarity:AC/DCEP
AWS Spec:E316L-16
Rod Type:Stick Electrode
Coating Type:Rutile
Welding Position:All Position
Material Composition:Stainless Steel
Packaging Type:Can
Packaging Description:18lb can

INCLUDED

  • Can of Hobart Sterling AP 316/316L Stick Electrodes (1/8" Diameter)

APPLICATIONS

  • Food and Beverage Processing Equipment
  • Petrochemical and Chemical Plants
  • Pulp and Paper Manufacturing Machinery
  • Textile Industry Equipment
  • General Stainless Steel Fabrication
  • Repair of Type 316 and 316L Tanks and Piping

FAQ

The Hobart Sterling AP 316/316L typically meets the requirements for AWS E316L-16.

The 'L' stands for 'Low Carbon'. This indicates that the carbon content is restricted to a maximum of 0.04% to prevent carbide precipitation and intergranular corrosion.

Yes, the Sterling AP 316/316L is designed to operate smoothly on both AC (Alternating Current) and DCEP (Direct Current Electrode Positive).

Yes, this is an 'All Position' (AP) electrode, meaning it is formulated to perform well in flat, horizontal, vertical, and overhead positions.

It is designed for welding stainless steel types 316, 316L, and 318. It can also be used for general corrosion-resistant applications on similar molybdenum-bearing stainless steels.

The slag is designed to be self-peeling or very easy to remove, which minimizes cleanup time and reduces the risk of slag inclusions.

For a 1/8" (3.2mm) E316L-16 electrode, the typical amperage range is approximately 75 to 110 Amps, depending on the position and base metal thickness.

Stainless electrodes should be kept dry. If the can is hermetically sealed, they are ready to use upon opening. If exposed to moisture, they may require reconditioning (typically 1 hour at 250-300°F, but check specific manufacturer data).

CATALOGUE & SPEC SHEETS

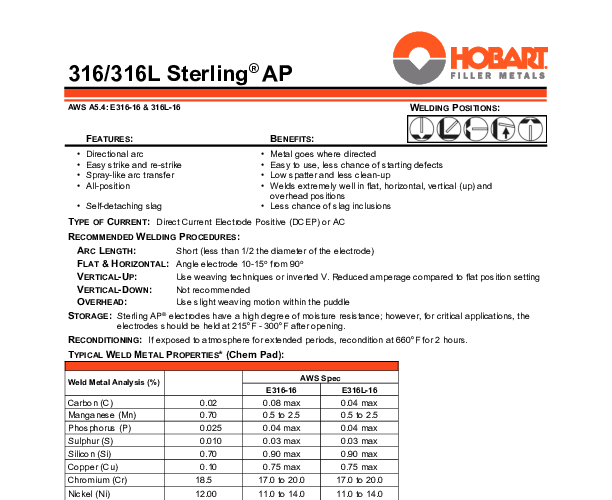

Spec Sheet

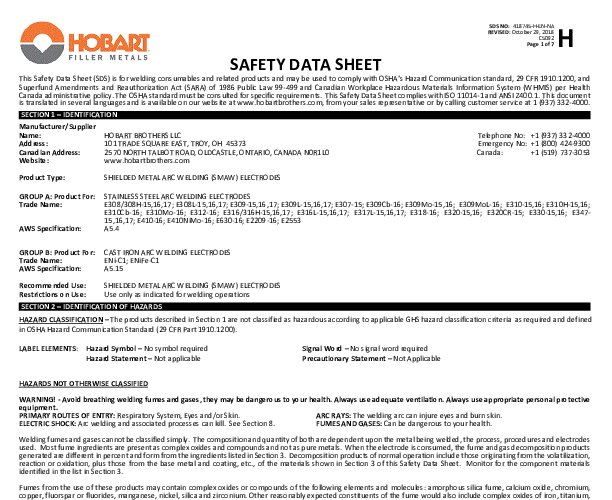

Safety Data Sheet
