6130323020 - ESAB OK 61.30 3.2mm E308L-17 Stainless Steel Stick Electrode

Packaging: 4.1kg tube
$55.45/kg $141.90/4.1kg tube only $34.61/kgSave 38%

Usually ships within 3-5 business days

OVERVIEW

Run Smooth Stainless Beads with ESAB OK 61.30

If you are looking for a stainless rod that runs like butter and leaves a finish you can be proud of, the ESAB OK 61.30 is the stick electrode you need in your stinger. This 3.2mm E308L-17 rod is a favorite among fabricators for a reason: it takes the headache out of welding stainless steel. We all know that stainless can be finicky, but the rutile coating on these rods gives you a super smooth arc that doesn't fight you. It lights up easy, restrikes without sticking, and lays down a bead that looks like it was done by a machine.

The best part? The cleanup. There is nothing worse than chipping away at stubborn slag on a stainless weld, risking scratches on the base metal. With the OK 61.30, the slag often curls up and peels off on its own as it cools—sometimes it just pops right off. This leaves you with a shiny, finely rippled bead that needs minimal polishing. It's perfect for those jobs where the weld is going to be seen, like on food service equipment, custom railings, or marine hardware. It runs great on both AC and DC+, so it's compatible with just about any stick welder you have in the shop.

This rod is built for 304L and 308L stainless, which are the most common grades you'll run into. The 'L' means low carbon, so you don't have to worry about the weld rusting out from the inside later on. It handles well in flat and horizontal positions, and you can even run it vertical-up if you need to. Whether you are repairing a tank, building a custom exhaust, or just doing some general fab work, these ESAB rods give you the control and quality you need to get the job done right the first time.

Additional Information
Brand:ESAB
Aws Spec:E308L-17
Diameter:3.2mm (1/8")
Grade:308
Weld Process:Stick (SMAW)
Polarity:AC/DC
Rod Type:Stick Electrode
Core Material:Stainless Steel
Coating Type:Rutile-Acid
AWS Classification:E308L-17
Welding Position:All Position (except vertical down)
Tensile Strength:560 MPa
Ferrite Content:FN 3-10
Packaging Description:4.1kg tube
Packaging:10 lb Tube

INCLUDED

  • ESAB OK 61.30 E308L-17 Stick Electrodes (3.2mm)
  • Protective Packaging (VacPac or Carton)

APPLICATIONS

  • Food and beverage processing equipment fabrication
  • Chemical and pharmaceutical plant piping and tanks
  • Architectural stainless steel structures and railings
  • General fabrication of 304 and 304L stainless steels
  • Repair and maintenance of stainless steel machinery
  • Marine fittings and hardware

FAQ

This electrode is classified as AWS A5.4 E308L-17.

The ESAB OK 61.30 operates on both AC (Alternating Current) and DC+ (Direct Current Electrode Positive).

It is designed for welding 19Cr/10Ni stainless steels, specifically AISI 304, 304L, 308, and 308L.

Yes, the E308L-17 coating provides excellent slag detachability, often self-releasing, which minimizes cleanup time.

The 'L' stands for Low Carbon (max 0.03%), which helps prevent carbide precipitation and intergranular corrosion.

Yes, it can be used for vertical-up welding, although -17 electrodes are most fluid and easiest to control in flat and horizontal positions.

The diameter is 3.2mm (approximately 1/8 inch).

It is suitable for working temperatures up to 350°C. For higher temperatures, different alloys may be required.

CATALOGUE & SPEC SHEETS

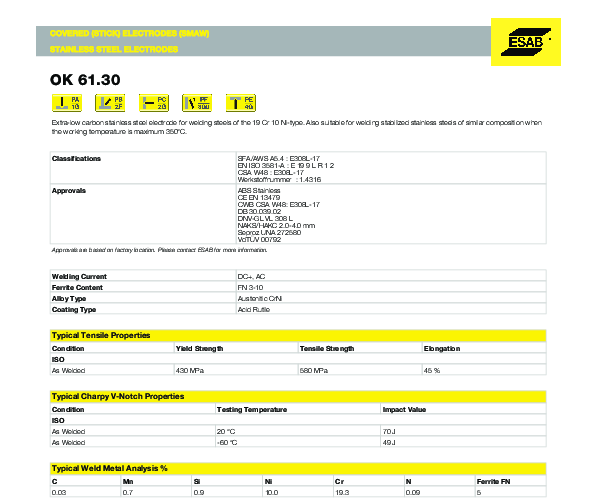

Spec Sheet
