ESAB OK 67.60 E309L-17 Stainless Steel Stick Electrode - 2.5mm

$76.30/kg $80.82/1.7kg tube only $47.54/kgSave 38%

Usually ships within 3-5 business days

OVERVIEW

The Ultimate Problem-Solver Rod for Mixed Metal Repairs

Every welder knows the headache of a mystery metal repair or the challenge of welding a stainless bracket onto a mild steel frame. The ESAB OK 67.60 (E309L-17) is your go-to solution for these tricky dissimilar metal jobs. This 2.5mm stick electrode is designed to bridge the gap between different steel types without cracking or failing, making it an essential addition to any maintenance or repair shop's inventory.

What makes the OK 67.60 a favorite among operators is its incredible runability. Thanks to its acid-rutile coating, this rod lights up easily and maintains a buttery-smooth arc that feels almost automatic. Whether you are running on a shop machine or a portable field welder, it performs beautifully on both AC and DC settings. The slag coverage is excellent, protecting the weld as it cools, and often curls up and pops off on its own, leaving you with a shiny, professional-looking bead that requires minimal grinding.

The 2.5mm diameter is perfect for a wide range of material thicknesses, offering enough control for thinner gauge sheet metal while still packing enough punch for root passes on thicker plates. It is also the ideal rod for "buttering"—applying a stainless layer to carbon steel before joining it to a stainless piece. If you need a reliable, easy-to-run rod that handles the toughest mixed-metal combinations with ease, the ESAB OK 67.60 is the tool for the job.

Why Welders Choose OK 67.60

  • Versatile: Welds stainless to mild steel, stainless to stainless, and overlays.
  • Easy Cleanup: Slag practically removes itself.
  • Smooth Arc: Minimal spatter means less cleanup time.
  • Forgiving: Handles dilution well, preventing cracks in the weld.
Additional Information
Brand:ESAB
Aws Spec:E309L-17
Diameter:2.5mm (3/32")
Grade:309
Weld Process:Stick (SMAW)
Polarity:AC/DC, AC, DCEP
AWS Classification:E309L-17
Rod Type:Stick Electrode
Coating Type:Acid Rutile
Material Composition:Stainless Steel (309L)
Welding Position:All Positions (except vertical down)
Applications:Dissimilar Steels, Buffer Layers, Cladding
Packaging Description:1.7kg tube
Packaging:10 lb Tube

INCLUDED

  • 1 x Pack of ESAB OK 67.60 E309L-17 Stick Electrodes (2.5mm)

APPLICATIONS

  • Joining stainless steel (309/304) to mild or low-alloy carbon steel
  • Depositing buffer layers on carbon steel prior to stainless cladding
  • Welding wrought or cast steels of similar composition
  • Maintenance and repair of unknown steel grades
  • Overlaying carbon steel for corrosion resistance

FAQ

E309L-17 electrodes are primarily used for welding dissimilar metals, such as joining stainless steel to mild steel, and for applying buffer layers on carbon steel.

Yes, the OK 67.60 is designed to operate smoothly on both AC (Alternating Current) and DC+ (Direct Current Electrode Positive).

The 'L' stands for 'Low Carbon'. This indicates a maximum carbon content of 0.04%, which helps prevent intergranular corrosion and carbide precipitation.

No, E309L-17 electrodes with rutile coatings are generally suitable for flat, horizontal, vertical-up, and overhead positions, but not vertical-down.

If the electrodes have been stored properly (e.g., in ESAB VacPac or hermetically sealed containers), baking is usually not required. If exposed to moisture, redrying at 350°C for 2 hours is recommended.

For a 2.5mm E309L-17 electrode, the recommended amperage range is typically between 50A and 90A, depending on the position and base material thickness.

309L has a higher alloy content (Chromium and Nickel) than 308L. This allows it to tolerate dilution from the mild steel side of the joint without becoming martensitic or cracking.

Yes, it is excellent for the first layer of cladding on carbon steel (the buffer layer). Subsequent layers can be done with 308L or 316L.

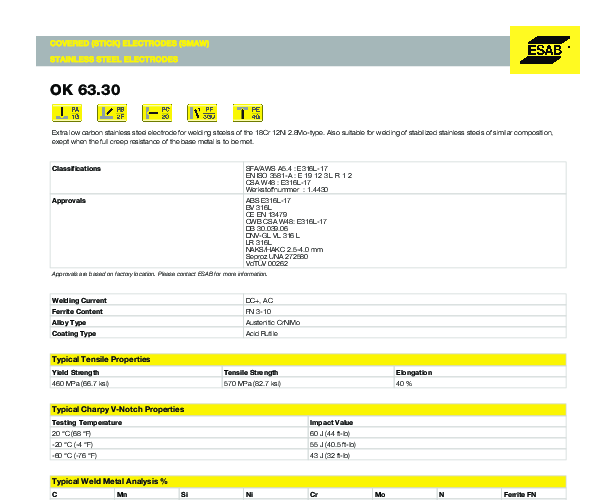

CATALOGUE & SPEC SHEETS

Spec Sheet
