163016R150 - ESAB OK Tigrod 316L Stainless Steel TIG Welding Rod - 1.6mm - 5kg Tube

Packaging: 5kg tube
$63.97/kg $198.25/5kg tube only $39.65/kgSave 38%

Usually ships within 3-5 business days

OVERVIEW

Experience Smooth Precision with ESAB OK Tigrod 316L

For professional welders who demand perfection in every bead, the ESAB OK Tigrod 316L 1.6mm TIG rod delivers an exceptional welding experience. Known for its "butter-smooth" flow and excellent wetting characteristics, this rod allows you to lay down clean, aesthetically pleasing welds with ease. When working on sanitary stainless steel piping or high-visibility architectural features, the visual quality of the weld cap is just as important as the internal penetration, and ESAB’s premium manufacturing process ensures a surface finish on the wire that promotes stable arc transfer and minimal oxidation.

The 1.6mm diameter is a versatile size, perfect for thin-wall tubing and sheet metal often found in food service and medical equipment fabrication. It offers precise control over the puddle, allowing for delicate heat management to minimize distortion on thinner gauges. The ER316L classification means you are working with a filler metal that is tough and crack-resistant. The weld puddle is fluid yet controllable, giving you the confidence to weld out-of-position when necessary without fighting the material.

ESAB has long been a trusted name in the welding industry, and the OK Tigrod series exemplifies their commitment to quality. Each 5kg tube is packed to protect the rods from contamination and moisture, ensuring that when you pull a rod out, it is ready to perform. Whether you are repairing a commercial kitchen sink, fabricating a custom exhaust system, or welding on a marine vessel, this rod provides the corrosion resistance and strength needed to ensure your work stands the test of time and the elements.

Why Welders Choose This Rod:

  • Superior Control: Excellent fluidity and wetting action for flat, smooth beads.
  • Clean Welds: High-purity alloy reduces inclusions and surface impurities.
  • Reliable Performance: Consistent diameter and temper for predictable feeding.
Additional Information
Brand:ESAB
AWS Spec:ER316L
Diameter:1.6mm (1/16")
Grade:316
Packaging:5 kg Tube
Packaging Description:5kg tube
Weld Process:TIG (GTAW)
Polarity:DCEN
Material Composition:Stainless Steel 316L
Shielding Gas Requirement:100% Argon
Rod Length:1000mm
Alloy Type:Austenitic Stainless Steel
Approvals:CE, DB, DNV-GL, NAKS/HAKC, VdTÜV, CWB

INCLUDED

  • 5kg Tube of ESAB OK Tigrod 316L 1.6mm TIG Rods
  • Product Information Sheet

APPLICATIONS

  • Chemical and petrochemical processing equipment
  • Food and beverage manufacturing machinery
  • Pharmaceutical and medical device fabrication
  • Shipbuilding and marine hardware
  • Architectural structures and railings
  • Textile and pulp/paper industry equipment
  • Sanitary piping systems

FAQ

For TIG welding with this rod, 100% Argon (I1) is the standard shielding gas. It provides excellent arc stability and prevents oxidation of the weld pool.

Yes, ER316L can be used to weld 304 stainless steel. However, it is more expensive than ER308L, which is the standard filler for 304. Using 316L on 304 is acceptable and often done when a shop wants to stock only one type of stainless rod.

The rods are typically supplied in standard 1000mm (1 meter) cut lengths.

The 'L' stands for 'Low Carbon'. This indicates that the carbon content is restricted to a maximum of 0.03%, which helps prevent intergranular corrosion (weld decay) in the heat-affected zone.

TIG welding with stainless steel rods like the OK Tigrod 316L is performed using Direct Current Electrode Negative (DCEN).

The exact count varies slightly by batch, but for 1.6mm diameter stainless steel rods, there are approximately 315-325 rods in a 5kg package.

The main difference is the addition of Molybdenum in 316L. This gives 316L superior corrosion resistance, especially against chlorides (like salt water) and acids, compared to 308L.

When full penetration welding stainless steel pipe or tubing, a backing gas (purge) of Argon is highly recommended to prevent oxidation (sugaring) on the root side of the weld.

CATALOGUE & SPEC SHEETS

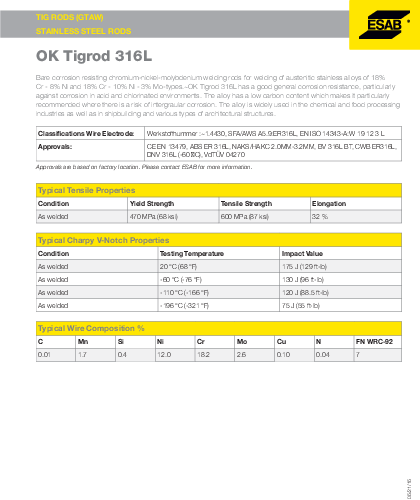

Spec Sheet
