S113251-031 - Hobart Deckmaster 1139 E6022 Stick Electrodes 5/32in 50lb Carton

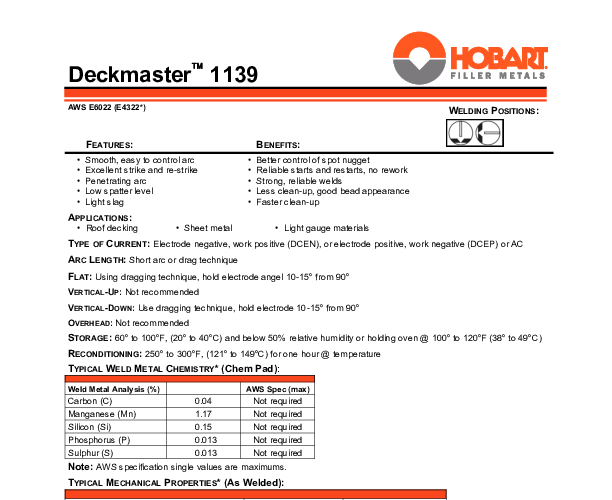

Technical Performance: Hobart Deckmaster 1139 (E6022)

The Hobart Deckmaster 1139 is an AWS E6022 classified stick electrode specifically formulated for the high-speed welding of roof decking and light gauge sheet metal. For welders, this rod offers a unique set of arc characteristics tailored to single-pass applications where burn-through and travel speed are critical. The 5/32-inch diameter is ideal for bridging gaps and providing the necessary heat input to penetrate through decking into structural beams. It is designed to operate across all standard polarities—AC, DCEN, and DCEP—giving the operator the flexibility to adjust the arc characteristics based on the specific machine and joint configuration.

Burn-Through Capability and Arc Stability
The flux coating on the Deckmaster 1139 is engineered to generate a forceful arc capable of blasting through heavy galvanization, primer paint, and plating. In decking applications, achieving a full-penetration spot weld (puddle weld) is essential for structural code compliance. This electrode facilitates that process by aggressively melting through the surface layers and fusing the deck sheet to the underlying beam. The slag system is designed to be fast-freezing, which supports the molten pool during rapid travel, yet fluid enough to allow gases to escape, reducing porosity even when welding over contaminants.

Positional Welding and Light Gauge Fabrication
While excellent for flat and horizontal spot welding, the Deckmaster 1139 truly shines in vertical down applications on light gauge materials. The fast-freeze characteristics allow for rapid downhill travel speeds without the puddle overrunning the arc. This makes it a superior choice for lap joints and seam welds on sheet metal where minimizing heat input (to prevent burn-through of the sheet itself) and maximizing speed are the goals. The electrode produces a flat bead profile with moderate spatter, which is typical for this class of cellulosic-type decking rods.

Application Notes
This electrode is strictly for single-pass welding. It is not designed for multi-pass structural welds where high impact toughness is required. It is optimized for the specific metallurgical and mechanical requirements of attaching decking to structural steel. Welders will appreciate the easy arc starts and restrikes, which are crucial when making hundreds of spot welds in a shift. The 50 lb carton packaging ensures a steady supply for high-volume production environments.
