S114859-031 - Hobart 24 E7024 3/16" Stick Electrodes - 50lb Carton

Packaging: 50lb pack
$12.28/lb $384.00/50lb pack only $7.68/lbSave 37%

Usually ships within 3-5 business days

OVERVIEW

Speed Up Your Welds with Hobart 24

If you are burning rod on heavy steel plate and want to get the job done fast, Hobart 24 (E7024) is the stick electrode you need. Known in the industry as a "jet rod" or "drag rod," this 3/16-inch electrode is built for speed. It features a thick coating packed with iron powder that melts into the weld pool along with the core wire, giving you way more metal deposit per inch than a standard 7018 or 6010. This means you can travel faster and fill joints quicker, making it perfect for long, straight fillet welds on tanks, barges, and heavy equipment.

One of the best things about Hobart 24 is how easy it is to run. You can literally drag the tip of the rod right on the steel—the thick coating maintains the perfect arc length for you. This makes it incredibly user-friendly, even if you aren't the steadiest hand in the shop. The arc is smooth and quiet, with almost no spatter to clean up afterwards. When you're done with a pass, the slag often curls up and falls off by itself, leaving a shiny, smooth bead that looks like it was done by a machine. It’s a huge time-saver when you have feet of weld to lay down.

This 50 lb carton of 3/16" rods is designed to run on AC or DCEN (straight polarity). Because it puts down so much metal so fast, the weld puddle is large and fluid, so you'll want to stick to flat positions or horizontal fillets—it's not meant for vertical or overhead work. However, for those flat, heavy-duty structural jobs, nothing beats the deposition rate and ease of Hobart 24. It’s a workhorse rod that helps you turn out professional-looking welds in record time.

Additional Information
Brand:Hobart
AWS Spec:E7024
Diameter:5.0mm (3/16")
Packaging Description:50 lb ctn
Polarity:AC/DCEN
Position:Flat/Horizontal
Amp Range:200-300 A
AWS Classification:E7024
Rod Type:Stick Electrode, SMAW
Coating Type:Iron Powder, Titania
Welding Position:Flat, Horizontal Fillet
Current Type:AC, DCEN
Tensile Strength:70,000 psi (min)
Yield Strength:58,000 psi (typical)

INCLUDED

  • 50 lb Carton of Hobart 24 E7024 Stick Electrodes (3/16" Diameter)

APPLICATIONS

  • Plate fabrication
  • Tank and vessel fabrication
  • Barge and ship construction
  • Earthmoving and heavy construction equipment
  • Railcar manufacturing
  • General structural fabrication
  • High-speed fillet welds

FAQ

Hobart 24 is classified as an E7024 carbon steel electrode.

No, E7024 electrodes produce a large, fluid weld pool and are designed strictly for flat and horizontal fillet welds.

Hobart 24 operates best on AC (Alternating Current) or DCEN (Direct Current Electrode Negative / Straight Polarity).

For the 3/16" diameter, the recommended amperage range is typically between 200 and 300 Amps, depending on the base metal thickness and machine characteristics.

While not a low-hydrogen electrode like E7018, it is best stored in a dry environment. If the rods absorb excessive moisture, they can be reconditioned, but standard dry storage is usually sufficient.

The coating contains a high percentage of iron powder (approx 50%), which melts into the weld to increase deposition rates and allows for the 'drag' welding technique.

No, Hobart 24 is known for its self-removing slag, which often lifts off the weld bead as it cools, requiring minimal chipping.

CATALOGUE & SPEC SHEETS

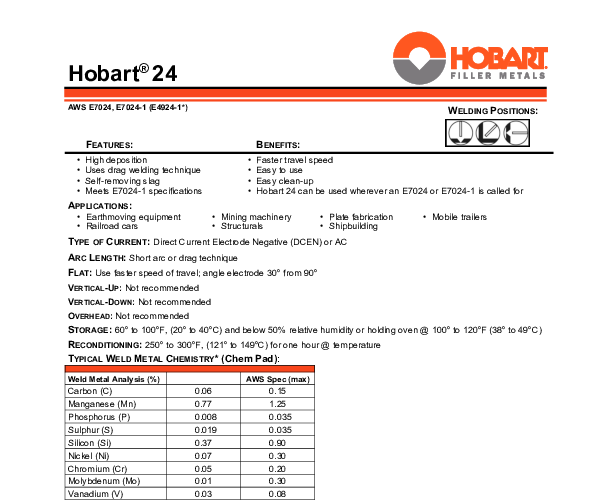

Spec Sheet

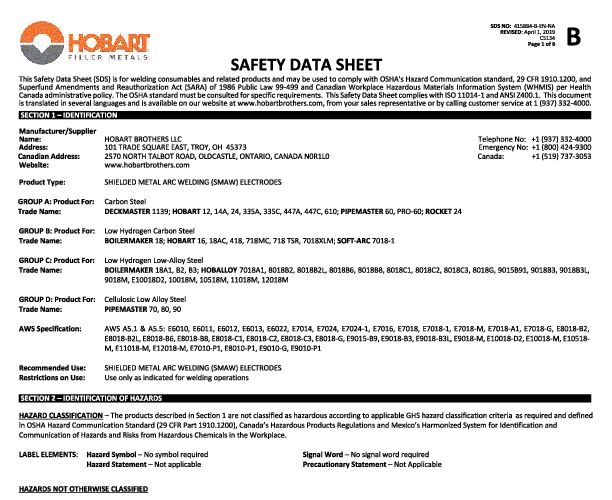

Safety Data Sheet
