S129432-033 - Hobart 610 E6010 3/32" Stick Electrodes (10lb Can)

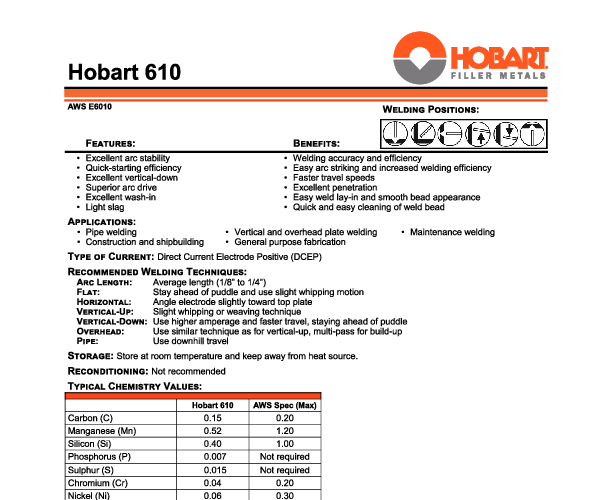

Technical Performance: Hobart 610 E6010 Electrodes

The Hobart 610 is a high-performance AWS E6010 carbon steel electrode designed for the most demanding Shielded Metal Arc Welding (SMAW) applications. Engineered for use with DCEP (Direct Current Electrode Positive) polarity, this 3/32" diameter rod is characterized by a deeply penetrating, spray-type arc that is essential for achieving X-ray quality welds, particularly on root passes in pipe fabrication. Its formulation is optimized to provide excellent mechanical properties, meeting the rigorous standards of API 5L grades and ASME code work.

Arc Characteristics and Slag System

The cellulosic coating of the Hobart 610 generates a high volume of shielding gas, which protects the weld pool while providing the force necessary to gouge through surface contaminants. This makes it superior for welding on galvanized or dirty steel. The slag system is thin and friable, allowing for quick and easy removal—often curling up on its own—which minimizes inter-pass cleaning time. The arc stability is exceptional, allowing for precise manipulation, whether using a whipping or stepping technique common with E6010 electrodes.

Positional Capabilities

Welders prefer the Hobart 610 for its fast-freezing weld puddle. This characteristic is crucial for 5G and 6G pipe welding positions, as well as vertical-up and overhead plate welding. The rapid solidification holds the molten metal in place against gravity, allowing for the deposition of flat, well-washed beads even in difficult joints. It is also highly effective for bridging gaps in poor fit-up scenarios, a common challenge in field erection and pipeline repair.

Metallurgical Properties

Delivering a minimum tensile strength of 60,000 psi, the Hobart 610 ensures structural reliability. It is designed to produce sound welds with good ductility and impact toughness. The 3/32" diameter is particularly versatile, offering enough deposition for fill passes on thinner wall pipe while being small enough for intricate root pass work where controlling heat input and penetration is vital.

Key Technical Benefits:

• Deep Penetration: Ensures complete fusion at the root.
• All-Position Welding: Excellent for vertical and overhead work.
• Contaminant Tolerance: Welds through light rust, oil, and paint.
• X-Ray Quality: Suitable for code-quality pressure piping.
