S116744-035 - Hobart Pipemaster 80 E8010-P1 1/8" Stick Electrode 50lb Can

Packaging: 50lb can
$13.72/lb $429.00/50lb can only $8.58/lbSave 37%

Usually ships within 3-5 business days

OVERVIEW

Get the Job Done with Pipemaster 80

When you are out on the right-of-way, you need a rod that drives hard and doesn't quit. The Hobart Pipemaster 80 is built for the pipe welder who demands performance and reliability. This 1/8-inch stick electrode is your go-to solution for welding high-yield pipe, specifically grades X56 through X70. If you are running downhill passes, you know that arc stability and puddle control are everything. The Pipemaster 80 delivers a crisp, digging arc that bites into the metal, giving you the penetration you need for a solid root bead.

One of the standout features of this rod is its "wash-in." It wets out the edges of the joint smoothly, helping you avoid undercut and cold lap, which are critical when you are shooting for X-ray quality. The slag is light and brittle, meaning it chips off easily with a quick rake of your hammer or file, letting you get back to burning rod faster. It’s designed to handle the real-world conditions of pipe welding, including steel with higher silicon content, so you don't have to worry about the chemistry fighting you.

The Pipemaster 80 isn't just for the root; it stacks well for fill and cap passes too, providing a flat bead profile that requires minimal grinding. It runs on DCEP and offers that classic cellulosic feel—aggressive yet controllable. Whether you are working on drill platforms, storage tanks, or miles of pipeline, this rod gives you the confidence that your welds will hold up to inspection and the elements.

Packaged in a heavy-duty 50 lb can, these rods are ready to throw on the rig and head to the job site. When the specs call for an 80-series rod that can handle the vertical-down hustle, reach for the Hobart Pipemaster 80.

Additional Information
Brand:Hobart
Diameter:3.2mm (1/8")
Packaging Description:50lb can
AWS Spec:E8010-P1
Polarity:DCEP
Position:All
Rod Type:Stick
Coating Type:Cellulosic
Welding Position:All Position, Vertical-Down
Applications:Pipeline, Shipbuilding, Storage Tanks, Drill Platforms
Pipe Grade Compatibility:X56, X60, X65, X70

INCLUDED

  • 50 lb Can of Pipemaster 80 1/8" Stick Electrodes

APPLICATIONS

  • Cross-country pipeline welding
  • High-yield pipe steels (API 5L X56-X70)
  • Storage tank fabrication
  • Shipbuilding and barge construction
  • Drill platforms and offshore structures
  • Vertical-down field welding

FAQ

Hobart Pipemaster 80 is classified as an AWS E8010-P1 electrode.

This electrode is designed to operate on Direct Current Electrode Positive (DCEP).

It is ideal for welding high-yield pipe steels, specifically grades X56 through X70.

Yes, Pipemaster 80 is specifically designed for excellent performance in vertical-down welding applications.

Absolutely. Its deep penetrating arc makes it excellent for root passes as well as fill and cap passes on pipe.

The electrode produces a light slag that is easy to remove, facilitating quick inter-pass cleaning.

These are 1/8 inch (3.2mm) diameter electrodes.

As a cellulosic electrode, it should generally be stored at ambient temperature in dry conditions. Unlike low-hydrogen rods, it should not be baked at high temperatures as it requires some moisture for proper arc force.

CATALOGUE & SPEC SHEETS

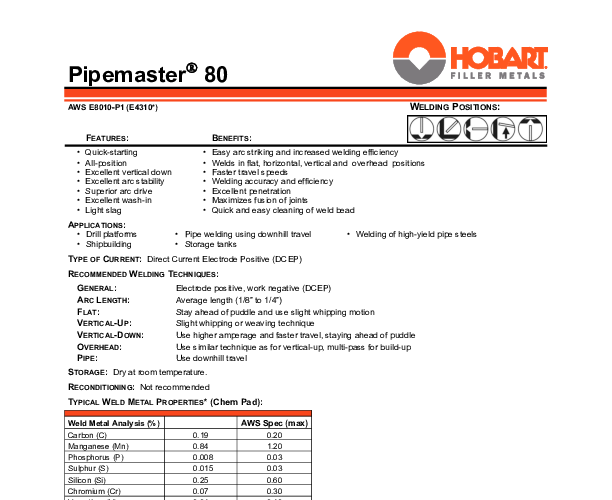

Spec Sheet
Safety Data Sheet
