ED032878 - Lincoln Excalibur 8018-B2 3/32" Stick Electrode (24lb Carton)

Packaging: 8lb tube
$19.56/lb $78.24/8lb tube only $9.78/lbSave 50%

Usually ships within 3-5 business days

OVERVIEW

Superior Arc Control with Excalibur 8018-B2

When the job calls for welding chrome-moly pipe or plate, you need a rod that runs smooth and passes X-ray every time. The Lincoln Excalibur 8018-B2 is built for exactly that. Designed for 1.25% Chromium, 0.50% Molybdenum steels, this stick electrode delivers the premium arc performance that the Excalibur name is famous for. Whether you are welding in a power plant or working on pressure vessels, this rod gives you the control you need to lay down defect-free beads.

Welders appreciate the Excalibur 8018-B2 for its exceptional puddle clarity and square coating burn-off. The arc is soft yet penetrating, allowing for precise manipulation of the weld pool without fighting the rod. One of the biggest advantages on the job site is the easy slag removal. In many cases, the slag lifts by itself or requires just a light tap, saving you time on cleanup and reducing the chance of slag inclusions in multi-pass welds. The rod is also designed to resist moisture pickup, meaning it stays fresh longer in the can and delivers consistent low-hydrogen results.

This 24 lb master carton ensures you have plenty of material on hand for larger projects. The 3/32" (2.5mm) diameter is versatile for root passes and fill passes on thinner wall pipe or plate. With its H4R low hydrogen rating, you can trust this electrode to provide the crack resistance and ductility required for high-temperature service applications. Upgrade your welding consumables to Lincoln Excalibur and experience the difference a premium coating makes on your final weld quality.

Additional Information
Brand:Lincoln Electric
Diameter:2.5mm (3/32")
AWS Spec:E8018-B2
Packaging Description:24 lb Master Carton
Position:All
Alloy Type:Chrome-Moly Steel
Hydrogen Content:Low Hydrogen (H4R)
Coating Type:Moisture Resistant (MR)
Tensile Strength:80,000 psi (min)
Current Type:DCEP, AC
Polarity:AC/DCEN
Amp Range:100-160 A

INCLUDED

  • 24 lb Master Carton (Contains 3 x 8 lb Cans)

APPLICATIONS

  • Petroleum Processing
  • Power Generation Plants
  • Process Piping
  • Pressure Vessels
  • High-Temperature Service Applications

FAQ

This electrode is classified as AWS E8018-B2 H4R.

It is designed for welding low alloy steels containing approximately 1.25% Chromium and 0.50% Molybdenum.

The diameter is 3/32 inch, which is approximately 2.5mm.

Yes, it features an MR (Moisture Resistant) coating and carries an H4R designation for low hydrogen.

This item is a 24 lb Master Carton.

Yes, the Excalibur series is known for easy slag removal, often self-peeling.

It is an all-position electrode, suitable for flat, horizontal, vertical, and overhead welding.

It is commonly used in power generation, petroleum processing, and process piping industries.

CATALOGUE & SPEC SHEETS

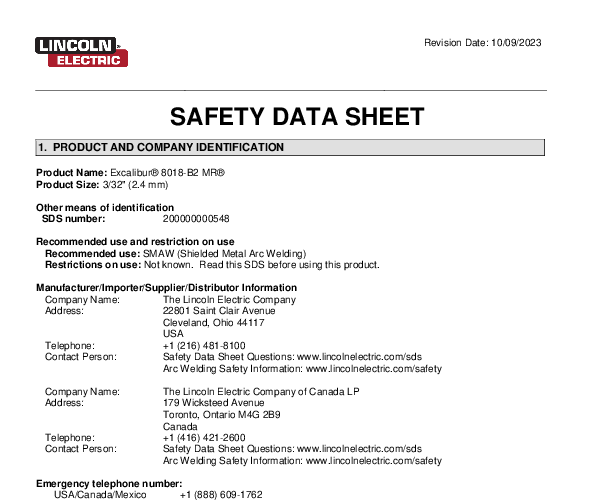

Safety Data Sheet
