S289112-053 - Hobart Fabco 91K2-C 0.045 Flux-Cored Wire 33lb Spool

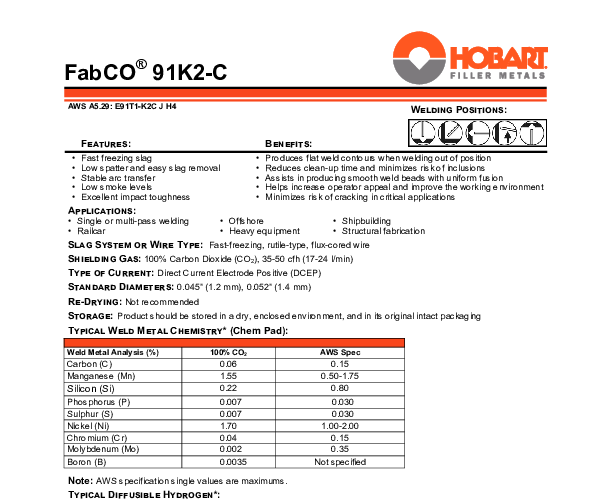

Technical Analysis: Hobart Fabco 91K2-C (E91T1-K2C)

The Hobart Fabco 91K2-C is a gas-shielded flux-cored arc welding (FCAW-G) wire engineered to meet the AWS A5.29 classification E91T1-K2C. This wire is designed for single and multiple pass welding of high-strength low-alloy steels using 100% CO2 shielding gas. The "91" in its classification indicates a minimum tensile strength of 90,000 psi (approx. 620 MPa), making it suitable for joining steels such as ASTM A514, A710, and similar high-yield materials often found in heavy structural and offshore applications.

Metallurgical Properties and Impact Toughness
The "K2" designator signifies a specific alloy composition, typically involving Nickel (Ni) additions, which enhances the weld metal's toughness. The Fabco 91K2-C is formulated to provide excellent Charpy V-Notch (CVN) impact properties at sub-zero temperatures, typically meeting requirements at -20°F (-29°C) or lower. This low-temperature toughness is critical for preventing brittle fracture in applications like offshore drilling rigs, shipbuilding, and crane manufacturing, where structures are subjected to dynamic loads in cold climates.

Operational Characteristics
Optimized for DCEP (Direct Current Electrode Positive) polarity, this 0.045-inch wire exhibits a smooth spray-like transfer with CO2 gas. While CO2 is generally associated with higher spatter levels compared to Argon mixes, the flux formulation of the Fabco 91K2-C stabilizes the arc and minimizes spatter generation. The slag system is rutile-based and fast-freezing, which provides excellent puddle control for out-of-position welding, including vertical-up and overhead. The slag is also easily removable, often detaching in large pieces, which improves productivity during multi-pass welding sequences.

Applications and Storage
Primary applications include the fabrication of earthmoving equipment, railcars, and structural steel components requiring 90 ksi yield strength matching. The wire is supplied in a 33 lb (15 kg) vacuum-packed spool to maintain low hydrogen levels (H8 or H4 depending on specific lot testing and storage). Proper storage is essential; once opened, the wire should be kept in a dry environment or a heated cabinet to prevent moisture pickup, which could compromise the hydrogen status of the deposited weld metal.
