S249425-096 - Hobart Fabcor 86R 5/64" Metal Core Wire 950lb Reel

Hobart Fabcor 86R: High-Deposition E70C-6M Wire

The Hobart Fabcor 86R (AWS E70C-6M) is a high-performance metal-cored electrode engineered for single and multiple pass welding of carbon steels. This 5/64" diameter version is a powerhouse for heavy fabrication, offering exceptional current carrying capacity and deposition rates that far exceed solid wires of similar size. It is formulated to operate with Argon/CO2 shielding gas mixtures (typically 75-95% Argon), producing a spray transfer that is smooth, stable, and virtually spatter-free.

Welders will appreciate the fluid puddle characteristics of the Fabcor 86R. The wire provides excellent wetting action, which helps the weld metal wash in smoothly at the toes, reducing the risk of cold lap and stress concentrations. This is particularly beneficial in fillet welds and heavy groove welds found in structural applications. The "R" in 86R denotes its enhanced formulation for rust and mill scale tolerance. High levels of silicon and manganese deoxidizers scavenge impurities from the weld pool, allowing you to produce sound, porosity-free welds even on steel that hasn't been sandblasted to white metal.

This product comes in a 950 lb reel, designed for stationary setups, boom-mounted feeders, or robotic arms where continuous welding is critical. The 5/64" diameter is best suited for the flat and horizontal positions due to the fluidity of the puddle and the high heat input. Mechanical properties are consistent and reliable, meeting AWS A5.18 requirements for tensile strength and Charpy V-Notch toughness. If you are welding heavy plate in railcar, barge, or earthmoving equipment production, the Fabcor 86R offers the perfect balance of speed, quality, and ease of use.

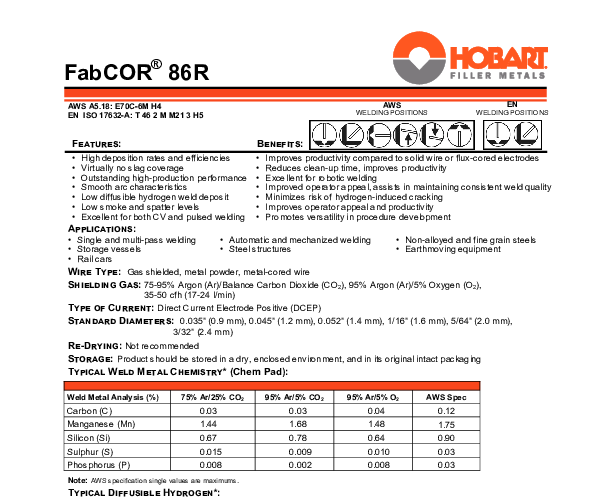

Technical Specifications

• AWS Class: E70C-6M H4
• Shielding Gas: 75-95% Argon / Balance CO2
• Current: DCEP (Direct Current Electrode Positive)
• Diameter: 5/64 inch (approx. 2.0 mm)
• Typical Applications: Heavy equipment, structural fabrication, general manufacturing.
