Hobart FabCOR Edge XP 1/16 Metal Core Wire 50lb Spool

$10.72/lb $335.00/50lb spool only $6.70/lbSave 37%

Usually ships within 3-5 business days

OVERVIEW

Experience the Edge in Metal-Cored Welding

Take your welding projects to the next level with Hobart FabCOR Edge XP 1/16" metal-cored wire. If you are looking for a wire that runs smooth, wets out like a dream, and leaves a bead that looks like it was laid by a machine, this is it. The "XP" stands for eXceptional Performance, and it lives up to the name by offering a balanced arc that feels forgiving yet powerful, making it a favorite among professional welders for structural and heavy-duty repairs.

We know that cleanup is the least enjoyable part of the job. That's why Hobart designed the FabCOR Edge XP with best-in-class silicon gathering technology. Instead of fighting stubborn glass islands scattered all over your weld, you'll find the silicon gathers neatly in large islands that often curl up and pop off on their own as the weld cools. This means less time with a chipping hammer or wire wheel and more time burning wire. The low spatter levels further keep your workpiece clean and your nozzle clear.

This 1/16" wire is a beast for laying down metal fast. It offers high deposition rates that solid wires just can't match, allowing you to complete long joints in fewer passes. It is designed specifically for flat and horizontal welding, where its fluid puddle flows out perfectly to create flat, smooth bead contours with excellent tie-in at the toes. Whether you are welding on agricultural machinery, truck frames, or railcars, the FabCOR Edge XP gives you the control and speed you need to produce professional-grade results every time.

Compatible with high-argon shielding gas mixes, this wire provides a stable, spray-like transfer that minimizes smoke and fume compared to flux-cored alternatives. Upgrade your setup with the 50 lb spool and feel the difference a premium metal-cored wire makes in your daily fabrication work.

Additional Information
Brand:Hobart
Diameter:1.6mm (1/16")
Packaging Description:50 lb spool
Weld Process:Metal-Cored (MCAW)
Position:Flat/Horizontal
Spool Size:50 lb Spool
AWS Classification:E70C-6M H4
Shielding Gas Requirement:75-95% Argon / Balance CO2
Wire Type:Metal-Cored
Polarity:DCEP
Tensile Strength:70,000 psi (Typical)
Material Composition:Carbon Steel

INCLUDED

  • 1 x 50 lb Spool of Hobart FabCOR Edge XP 1/16" Metal-Cored Wire

APPLICATIONS

  • General Fabrication
  • Structural Steel Fabrication
  • Heavy Equipment Manufacturing
  • Forestry and Mining Equipment
  • Agricultural Machinery
  • Commercial Truck and Trailer Fabrication
  • Railcar Construction
  • Robotic and Automated Welding Cells

FAQ

Hobart recommends using a mixture of 75-95% Argon with the balance being CO2. High argon mixtures promote a stable spray transfer and minimize spatter.

The Hobart FabCOR Edge XP is classified as E70C-6M H4 according to AWS A5.18 standards.

No, this specific wire is designed for flat and horizontal positions only due to its fluid weld pool. For out-of-position welding, a flux-cored wire or a pulsed MIG process with specific parameters would be required.

Metal-cored wires like FabCOR Edge XP offer higher deposition rates, faster travel speeds, better gap bridging, and superior wetting action compared to solid wires, leading to increased productivity.

Yes, knurled drive rolls (V-knurled or U-groove depending on the feeder) are typically recommended for cored wires to prevent crushing the tubular wire while ensuring positive feeding.

This product is 1/16 inch (approx. 1.6mm) in diameter.

It refers to the wire's chemical ability to collect silicon impurities into large, centralized islands on the weld face, making them easy to remove compared to scattered deposits.

Yes, FabCOR Edge XP is highly recommended for robotic applications due to its consistent arc characteristics, low spatter, and minimal cleanup requirements.

CATALOGUE & SPEC SHEETS

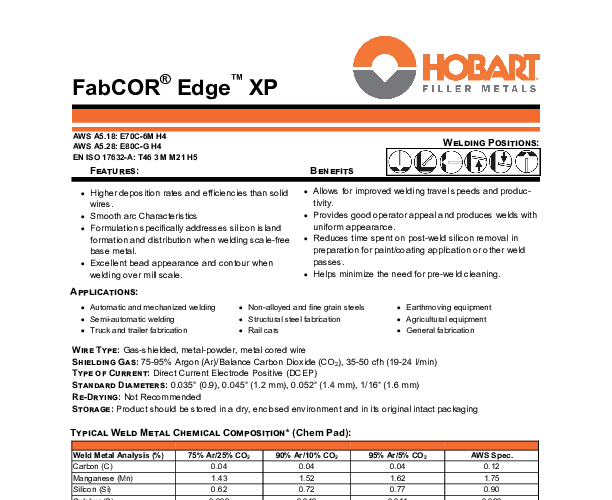

Spec Sheet

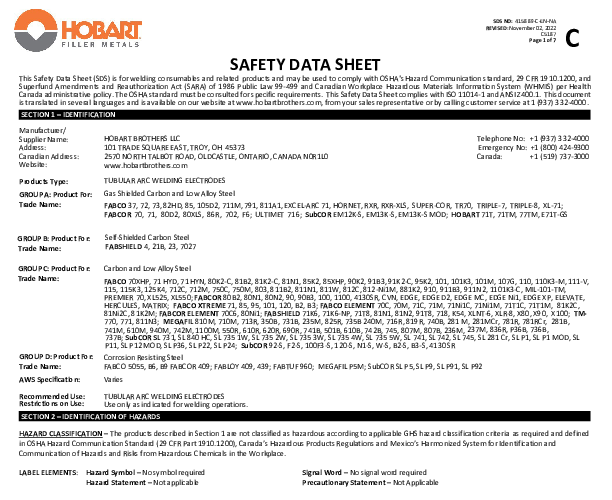

Safety Data Sheet
