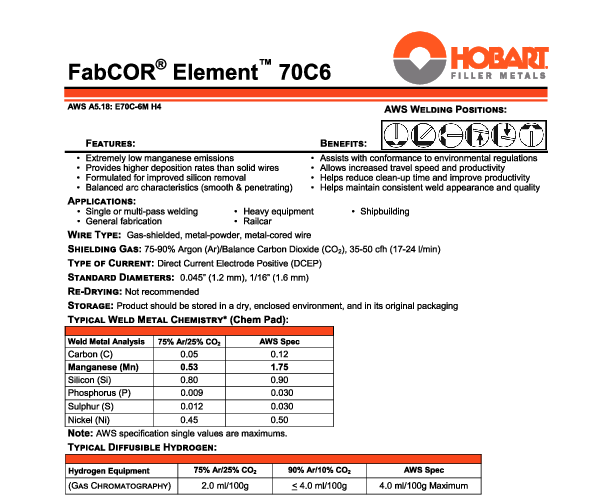

The Hobart FabCOR Element 70C6 in .045" diameter (33lb spool) is a premium metal-cored wire developed to meet the evolving demands of the welding industry. Classified as E70C-6M H4, this wire is engineered to provide a solution to the challenge of manganese exposure limits. By modifying the chemical composition of the core elements, Hobart has created a consumable that significantly reduces manganese emissions at the source, helping facilities meet OSHA and ACGIH standards while maintaining the robust mechanical properties required for structural mild steel welding.
Performance-wise, the FabCOR Element 70C6 excels in high-deposition applications. It is designed for use with Argon/CO2 shielding gas mixtures (typically 75-95% Argon), which promotes a smooth spray transfer and deep penetration. The wire exhibits excellent wetting characteristics, washing in smoothly at the toes of the weld to reduce stress concentrations and the risk of fatigue failure. This makes it an exceptional choice for dynamic loading applications found in heavy earth-moving equipment and railcar chassis construction. The wire's formulation also ensures low diffusible hydrogen levels (H4), reducing the risk of hydrogen-induced cracking.
Switching to FabCOR Element 70C6 can lead to immediate productivity gains. The high deposition efficiency means more wire becomes weld metal compared to flux-cored alternatives, and the faster travel speeds outpace solid wires in many joint configurations. Additionally, the reduction in spatter and slag (typical of metal-cored wires) minimizes post-weld grinding and cleaning, streamlining the entire fabrication workflow. For welders seeking a balance of safety, speed, and structural integrity, the Element 70C6 is a top-tier choice.
| Additional Information |
|---|
| Brand:Hobart |
| Diameter:0.045 in |
| Packaging Description:33lb-spool |
| Spool Size:33 lb Spool, 33 lb |
| Weld Process:Metal-Cored (MCAW) |
| Aws Spec:E70C-6M |
| Polarity:DC, DCEP |
| Position:Flat/Horizontal |
| Wire Type:Metal-Cored |
| Material Composition:Mild Steel |
| Shielding Gas Requirement:75-95% Argon / Balance CO2 |
| AWS Classification:E70C-6M H4 |
| Wire Diameter:0.045" |
| Tensile Strength:70,000 psi (nominal) |
| Applications:Heavy Equipment, Shipbuilding, Railcar, General Fabrication |
