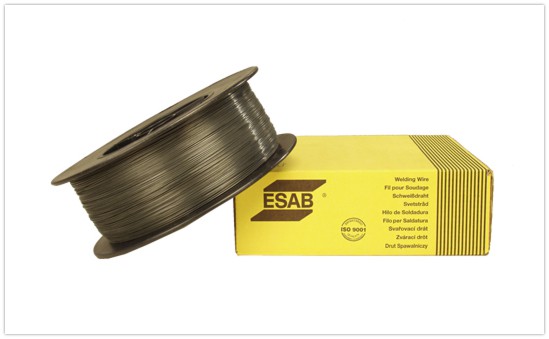

242201168 - ESAB Dual Shield R-70 Ultra 1.6mm Flux-Cored Wire 27.2kg Spool

Packaging: 27.2kg spoo
$25.32/kg $344.90/27.2kg spoo only $12.68/kgSave 50%

Usually ships within 3-5 business days

OVERVIEW

Smooth Arc and Easy Cleanup for Professional Welders

Experience the difference with ESAB Dual Shield R-70 Ultra, a flux-cored wire built to make your day under the hood smoother and more productive. If you are welding heavy plate in the flat or horizontal position, this 1.6mm wire offers a buttery smooth arc that is easy to control. One of the biggest frustrations with flux-cored welding is the cleanup; however, the R-70 Ultra features a slag system that provides complete coverage yet detaches easily—often peeling off by itself—saving you time on chipping and grinding.

Beyond just weldability, this wire is formulated to generate lower fumes than standard flux-cored wires. This means better visibility of the weld puddle and improved air quality in your breathing zone. The wire runs cleanly with very little spatter when your voltage and amperage are balanced, producing professional-looking beads with excellent tie-in. It is versatile enough to run on straight CO2 for deep penetration and economy, or on an Argon/CO2 mix for an even smoother appeal.

Packaged in a substantial 27.2kg spool, this wire is ready for the long haul on heavy structural steel, barge building, or earthmoving equipment repairs. When you need a wire that deposits fast, cleans up easy, and keeps the air clearer, reach for the Dual Shield R-70 Ultra.

Additional Information
Brand:ESAB
Diameter:1.6mm (1/16")
Weld Process:Flux-Cored (FCAW)
Position:Flat/Horizontal
AWS Spec:E70T-1
Packaging Description:27.2kg spoo
Material Composition:Mild Steel
Wire Type:Gas-Shielded Flux-Cored
Shielding Gas Requirement:100% CO2, 75% Argon / 25% CO2
Spool Size:27.2 kg
AWS Classification:E70T-1C, E70T-1M
Polarity:DCEP

INCLUDED

  • 1 x 27.2kg Spool of ESAB Dual Shield R-70 Ultra Flux-Cored Wire (1.6mm)

APPLICATIONS

  • Industrial and General Fabrication
  • Civil Construction and Structural Steel
  • Ship and Barge Building
  • Mobile Earthmoving Equipment
  • Railcar Manufacturing
  • Heavy Equipment Repair

FAQ

This wire is designed to operate with either 100% CO2 or a mixture of 75% Argon and 25% CO2.

The Dual Shield R-70 Ultra is designed specifically for Flat and Horizontal welding positions.

This specific spool contains 1.6mm (1/16 inch) diameter wire.

The spool weighs 27.2kg, which is approximately 60 lbs.

Yes, like most gas-shielded flux-cored wires, it should be welded using Direct Current Electrode Positive (DCEP).

The 'Ultra' series is formulated to produce significantly lower welding fumes and smoother arc characteristics compared to standard flux-cored wires.

No, it is an E70T class wire intended for high-deposition welding in the flat and horizontal positions only.

It meets AWS A5.20 classifications E70T-1C (with CO2) and E70T-1M (with Ar/CO2 mix).

CATALOGUE & SPEC SHEETS

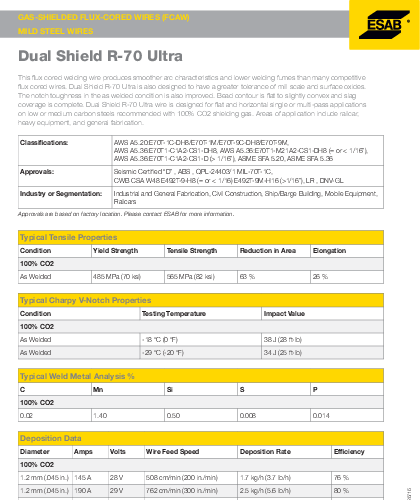

Spec Sheet
