ED032814 - Lincoln SuperArc L-59 ER70S-6 .052 MIG Wire 60lb Spool

Packaging: 60lb per spool
$13.32/lb $499.80/60lb per spool only $8.33/lbSave 37%

Usually ships within 3-5 business days

OVERVIEW

Experience the SuperArc Difference in Your MIG Welding

If you are tired of fighting with your wire feeder or dealing with constant contact tip burn-backs, it is time to load up a spool of Lincoln Electric SuperArc® L-59®. This isn't just another generic reel of MIG wire; it is a high-performance tool designed to make your day under the hood smoother and more productive. This 60lb spool of .052" wire is built for the serious fabricator who needs to lay down a lot of metal without constant interruptions. The "L-59" designation means you are getting a premium ER70S-6 wire that is loaded with deoxidizers. What does that mean for you? It means this wire eats through mill scale, light rust, and surface contaminants that would normally cause porosity or spatter in lesser wires.

The secret sauce of the SuperArc line is the MicroGuard® coating. Lincoln has engineered this copper coating to stay on the wire and not in your liner. You will notice immediately that the wire feeds smoother, even if your gun cable is twisted around a jig or you are reaching across a large part. That smooth feeding means a stable arc, less chatter, and a puddle that goes exactly where you want it. For welders running .052 wire, you are likely working on thicker plate—structural beams, heavy machinery, or tank fabrication. The L-59 gives you the deposition rates you need to fill joints fast, but with a wetting action that ties into the toes of the weld beautifully, reducing the chance of cold lap.

Another huge plus is the tip life. Because the wire is so clean and feeds so well, you aren't arcing out inside the tip as often. This means fewer trips to the tool crib for consumables and more time actually welding. Whether you are running straight CO2 for deep penetration or a 90/10 mix for a sleek spray transfer, this wire handles it all. It puts down a bead with excellent impact toughness and tensile strength, so you can trust your welds to hold up in the field. Upgrade your machine with ED032814 and feel the difference a premium wire makes.

Additional Information
Brand:Lincoln Electric
Diameter:0.052"
AWS Spec:ER70S-6
Packaging:60 lb Spool
Weld Process:MIG (GMAW)
Polarity:DCEP
Grade:S6 Copper Coated
Wire Diameter:0.052"
Spool Size:60 lb
AWS Classification:ER70S-6
Wire Finish:Copper-coated
Shielding Gas Requirement:100% CO2, 75-95% Argon / Balance CO2
Material Composition:Mild Steel
Applications:Automotive, Heavy Equipment, Structural Steel, Robotic Welding
Packaging Description:60lb per spool

INCLUDED

  • 1 x 60lb Spool of SuperArc L-59 .052" MIG Wire

APPLICATIONS

  • Automotive and transportation manufacturing
  • Heavy equipment and machinery fabrication
  • Structural steel construction
  • General plate fabrication
  • Robotic and hard automation welding cells
  • Pressure vessel and tank manufacturing

FAQ

Lincoln SuperArc L-59 is classified as AWS ER70S-6.

You can use 100% CO2 for deep penetration and lower cost, or a blend of Argon/CO2 (such as 75/25 or 90/10) for better arc stability and reduced spatter, especially in spray transfer modes.

Yes, as an ER70S-6 wire, it contains higher levels of manganese and silicon deoxidizers which allow it to handle light to moderate rust and mill scale better than ER70S-3 wires.

This product comes in a 60lb (approx. 27.2 kg) spool.

MicroGuard is a proprietary surface treatment by Lincoln Electric that improves wire feedability, reduces copper flaking, and extends contact tip life by minimizing friction and liner clogging.

Absolutely. The consistent diameter and superior feedability of SuperArc L-59 make it an industry standard for robotic and automated welding applications.

The wire diameter is 0.052 inches (approximately 1.3 mm).

For 0.052" solid wire, you should use V-groove drive rolls sized specifically for .052 wire to ensure proper feeding without deforming the wire.

CATALOGUE & SPEC SHEETS

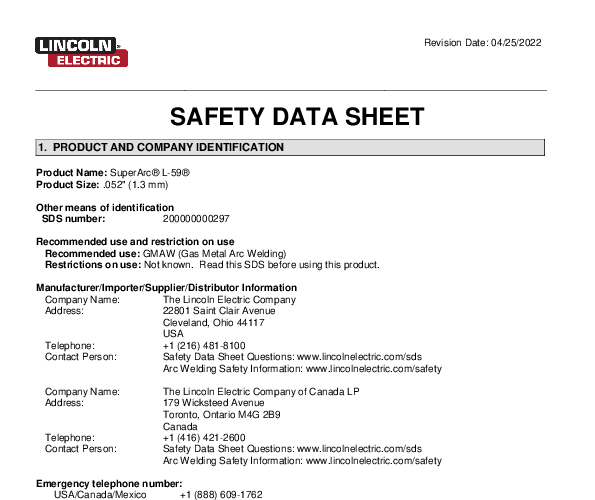

Safety Data Sheet
