E70S230 - Harris ER70S-2 1/16" TIG Welding Rod - 10lb Tube

Packaging: 10lb tube
$15.54/lb $95.70/10lb tube only $9.57/lbSave 38%

In stock

OVERVIEW

Harris ER70S-2: The Problem Solver for Dirty Steel

When you are out in the field or working on a repair job where the metal isn't brand new, you need a TIG rod that is forgiving. The Harris® ER70S-2 1/16" Carbon Steel TIG Rod is exactly that tool. Known among professional welders as the "triple deoxidized" rod, it is formulated to handle the real-world conditions of welding. If you have ever struggled with porosity or pinholes when TIG welding mild steel that had a bit of rust or mill scale on it, switching to ER70S-2 can make a world of difference. The added deoxidizers in the wire act as cleaning agents in the puddle, pulling out impurities and leaving you with a smooth, solid bead.

This 10 lb box of 36-inch rods is a staple for any fabrication shop. While it is famous for its ability to handle dirty metal, it is also a precision instrument. It is widely used for roll cages, automotive chassis work, and critical pipe welding because it produces a puddle that is easy to control and wets out flat. The 1/16" diameter is versatile, perfect for thin sheet metal work but substantial enough to handle root passes on thicker tubing. It flows smoothly and freezes predictably, giving you the control you need to lay down those stack-of-dimes welds.

Don't let inferior filler metal compromise your project. The Harris ER70S-2 offers a tensile strength of 78,000 psi, ensuring that your welds aren't just pretty—they are strong. Whether you are fixing farm equipment, building a custom exhaust, or welding structural brackets, this rod gives you the confidence that your welds will hold. It works on all positions, so you can tackle vertical and overhead joints with the same ease as flat bench work.

Why Choose Harris ER70S-2?

  • Superior Cleaning Action: Triple deoxidizers fight porosity on dirty steel.
  • Versatile Application: Ideal for everything from pipe root passes to sheet metal repairs.
  • Strong Welds: 78,000 psi tensile strength for reliable structural repairs.
  • Great Value: 10 lb box keeps your shop stocked for big projects.
Additional Information
AWS Spec:ER70S-2
Brand:Harris
Diameter:1.6mm (1/16")
Grade:S2
Packaging:10 lb Tube
Weld Process:TIG (GTAW)
Polarity:DCEN
Material Composition:Carbon Steel, Triple Deoxidized
Rod Length:36"
Tensile Strength:78,000 psi
Yield Strength:60,000 psi
Welding Position:All Position
Packaging Description:10lb tube

INCLUDED

  • 10 lb Box of 1/16" x 36" ER70S-2 Carbon Steel TIG Rods

APPLICATIONS

  • Root pass welding on carbon steel pipes
  • Repair welding on mild and low alloy steels
  • Sheet metal fabrication
  • Automotive chassis and roll cage construction
  • Welding over rust, mill scale, or dirt
  • Small diameter pipe and tubing
  • Structural steel components
  • Castings and forgings repair

FAQ

It means the wire contains Zirconium, Titanium, and Aluminum in addition to Silicon and Manganese. These elements help remove oxygen and nitrogen from the weld pool, preventing porosity even when welding on dirty or rusty steel.

No, ER70S-2 is designed for carbon and mild steels. For stainless steel, you would typically use an ER308L or similar stainless grade rod.

This rod is designed for use with DCSP (Direct Current Straight Polarity), also known as DCEN (Direct Current Electrode Negative).

Yes, 1/16" (1.6mm) is a very versatile size suitable for thin sheet metal as well as root passes on thicker materials.

The Harris ER70S-2 produces a weld deposit with a tensile strength of approximately 78,000 psi.

While it varies slightly by exact density and cut, a 10 lb box of 1/16" x 36" steel TIG rods typically contains approximately 300 to 320 rods.

Yes, this product conforms to AWS A5.18 ER70S-2 standards.

Yes, while it is famous for single-pass capabilities on dirty steel, it is also suitable for multi-pass applications on carbon steel.

CATALOGUE & SPEC SHEETS

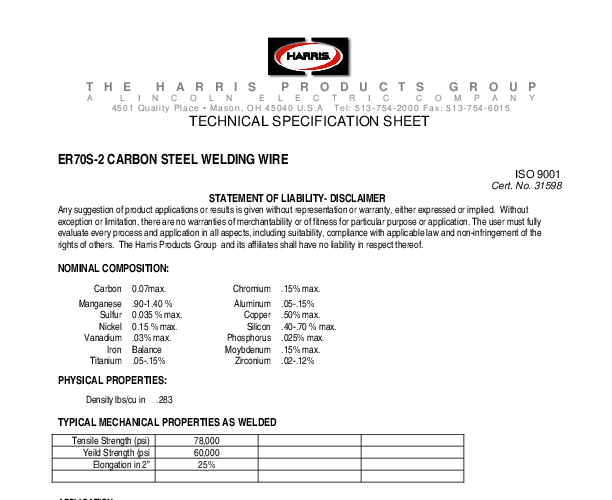

Spec Sheet
