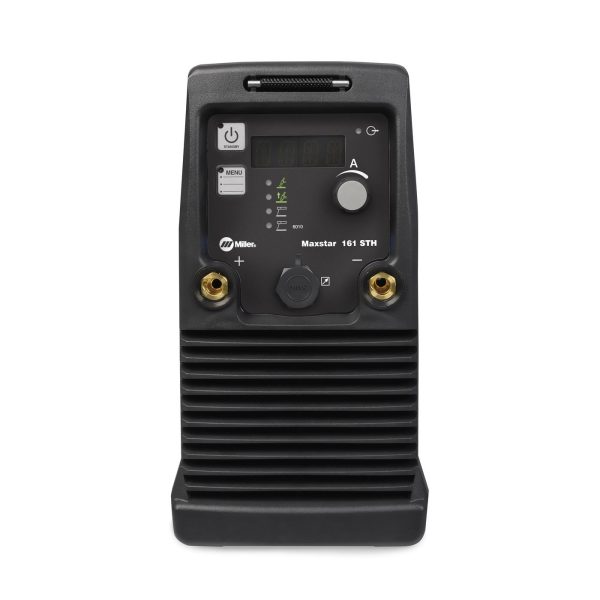

907711 - Miller Maxstar 161 STH DC TIG/Stick Welder Standard Package

$5,231.77/ea Save 22% ($1,146.77)$4,085.00/ea

Usually ships within 3-5 business days

Save up to an additional $400.00 with a manufacture rebate until December 31, 2026.

OVERVIEW

Take Professional TIG & Stick Welding Anywhere

Meet the Miller Maxstar 161 STH, the ultimate solution for welders who need professional-grade performance in a package that goes wherever the job takes you. Weighing in at a mere 13 pounds, this powerhouse is redefining portability in the welding industry. Whether you are climbing ladders, working in tight mechanical rooms, or moving between job sites, the adjustable shoulder strap and compact design make transportation effortless. But don't let the size fool you—this machine is packed with features that deliver superior arc quality for both TIG and Stick processes.

Versatile Power for Any Location
Never worry about finding the right power hookup again. The Maxstar 161 STH comes equipped with separate 120V and 240V power cords that swap out in seconds without tools. Thanks to Auto-Line™ technology, you can plug into any standard residential or industrial power supply, and the machine handles the rest. It's the perfect companion for maintenance repair, shipboard installation, or farm and ranch work where power sources vary.

Precision Control Made Easy
Struggling with thin materials? The built-in Pulsed TIG feature (up to 150 pulses per second) gives you incredible control over the weld puddle, reducing heat input and preventing warping. If you aren't sure where to start, the Pro-Set™ feature takes the guesswork out of setup, letting you dial in optimal settings instantly. For Stick welding, say goodbye to frustrating starts. The Adaptive Hot Start™ ensures your electrode lights every time without sticking, even with tough 6010 rods. Plus, the built-in gas solenoid means you don't need a bulky TIG torch with a manual valve—streamlining your setup for maximum comfort and efficiency.

Additional Information
Brand:Miller
Amperage:160
Voltage:120/240 V
Weld Process:TIG (GTAW)
Packaging Description:1 Per Ea
Duty Cycle:20%
Process Type:TIG (GTAW)
Input Voltage:120 V, 240 V
Input Phase:1-Phase
Amperage Range:5 A - 160 A
Net Weight:5.9 kg
Warranty Period:3 Years
Portability:Shoulder Strap, Handle
Cooling Type:Fan-On-Demand
Max Open Circuit Voltage:48 VDC
Item:Welding Machine

INCLUDED

  • Maxstar® 161 STH Power Source
  • 6.5 ft. (2 m) Primary Cords for 120V and 240V
  • Stick electrode holder with 13 ft. (4 m) cable and 25 mm Dinse-style connector
  • Work clamp with 10 ft. (3 m) cable and 25 mm Dinse-style connector
  • One air-cooled TIG torch connector (273483)
  • Adjustable Handle/Shoulder strap
  • Quick Reference Guide

APPLICATIONS

  • Process Pipe and Mechanical Contracting
  • Food and Beverage Industry Maintenance
  • Restaurant and Kitchen Repair
  • Experimental Aircraft and Aerospace
  • Shipboard Installation and Repair
  • Farm, Ranch, and Metal Art
  • Maintenance and Repair (Field and In-Plant)

FAQ

No, the Standard Package (907711) includes the power source, electrode holder, work clamp, and power cords. It includes a TIG torch connector (273483) but does not include the TIG torch itself. You will need to purchase a TIG torch separately or choose a different package if you require one.

The DC Pulsed TIG feature allows you to pulse the arc between 0 and 150 Hz. This increases puddle agitation and arc stability while significantly reducing heat input, which helps prevent distortion and burn-through on thin materials.

Yes, the Maxstar 161 STH is designed with superior Stick arc performance that specifically supports difficult-to-run electrodes like E6010, making it suitable for pipe and construction applications.

The machine features Miller's Auto-Line technology and comes with two separate power cords (one for 120V and one for 240V). You simply disconnect the cord from the rear of the machine and attach the one you need—no tools or internal linking required.

On 240V input, the rated output is 160 Amps at 26.4 VDC with a 20% duty cycle, or 110 Amps at 24.4 VDC with a 100% duty cycle. On 120V input, it is 90 Amps at 13.6 VDC with a 100% duty cycle.

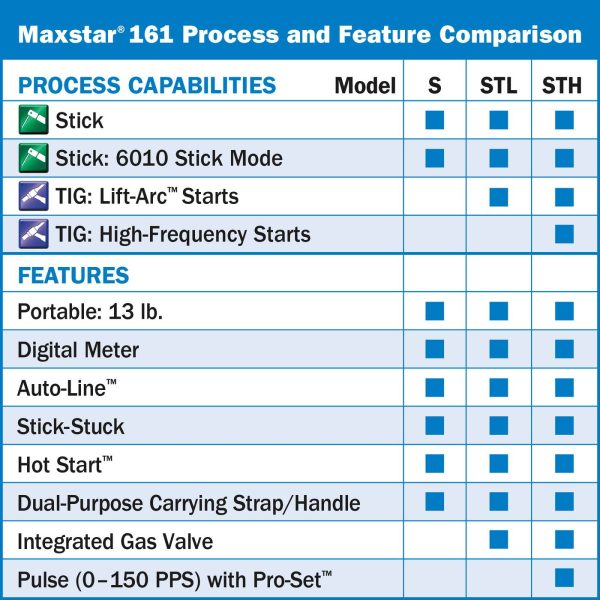

Yes, the 'STH' in the model name indicates it supports both Lift-Arc™ and High-Frequency (HF) arc starting for TIG welding, allowing for non-contact arc initiation.

No, the Maxstar 161 STH is a DC-only machine. It is excellent for steel and stainless steel but cannot weld aluminum, which typically requires AC output.

Pro-Set eliminates guesswork when setting weld parameters. It provides professionally optimized preset controls for features like Pulse, allowing you to quickly select the best settings for speed and confidence.

CATALOGUE & SPEC SHEETS

Spec Sheet
4.7 87 reviews
  • 5 stars 76
  • 4 stars 5
  • 3 stars 2
  • 2 stars 1
  • 1 star 3
Write a review

Used this product on the job? Tell other welders how it held up.

Your rating

  1. Size does not matter with this machine

    Been welding with this machine at my work for a couple years. It doesn't pop breakers like its predecessor. You can actually stick weld without long arching. 220 works much better than 110 but my generator in my feild truck runs this great !

    Michael

    Sourced from Miller
  2. Yes I recommend these to all my contractor friends

    I use these on all my job sites industrial and commercial stainless carbon they're great for TIG welding and they run all day long. we do 12-hour days 6 7 days a week and they work fantastic

    Michael

    Sourced from Miller
  3. I would buy this product again.

    I use this welder for clean tig welding on steel , galvanized, Stainless metals . we have had 3 of these and they are great.

    Ron

    Sourced from Miller
  4. I would defiantly buy this machine again.

    We use this machine for Tig welding food grade milk pipe in our dairy. It works great, and with its small size we can get up into the ceiling to reach pipes needing leak repairs.

    Tim

    Sourced from Miller
  5. Top notch

    Very worthy and reliable machine … great performance.. good quality so far

    Marcos

    Sourced from Miller
  6. Worth the money

    Best little welder I've used. Runs 6010 and 7018 just like my big blue. I've ran a few 309l rods and all have welded great doesn't trip my 20 amp 120v breaker. Easy to use and is convenient for jobs that are next to impossible to get my welding rig into .. great for plant work / mobile welding

    Brandon

    Sourced from Miller
  7. Next purchase shall be the maxstar 210 DX

    I use this machine in the sanitary welding field. Very compact and very convenient. It gives great output and can handle heavy use on the daily. The pulse on this machine is very convenient for welding stainless steel Pharaohs that can pull if you don't control your heat. Not with this machine.

    John

    Sourced from Miller
  8. Best portable DC Tig unit out there.

    Great little machine for portable work. The machine this small, lightweight, runs on 110 or 220, has HF and miller build quality. What else is there to say.

    Shawn

    Sourced from Miller
  9. I would buy this suitcase welder over and over again.

    I would stick and I'm learning how to tig user friendly.

    Santos

    Sourced from Miller
  10. Good purchase

    So far I really like the machine wish I could have gotten another maxstar 150stl but this one is doing good

    Jeffrey

    Sourced from Miller
