907579001 - Miller Spectrum 625 X-TREME Plasma Cutter with 20ft XT40 Torch

$4,977.79/ea Save 22% ($1,090.79)$3,887.00/ea

Usually ships within 3-5 business days

Save up to an additional $300.00 with a manufacture rebate until December 31, 2026.

OVERVIEW

Ultimate Portability and Power for Welders

Take your metal cutting capabilities anywhere with the Miller Spectrum 625 X-TREME Plasma Cutter. Designed for the welder who needs mobility without compromise, this unit weighs in at a mere 21 pounds, making it easy to carry around the shop or to the job site using the included shoulder strap. Despite its small size, it packs a serious punch, delivering 40 amps of cutting power to sever 5/8-inch mild steel cleanly and efficiently. Whether you are working on farm equipment, custom car fabrication, or HVAC ductwork, the Spectrum 625 X-TREME is ready to perform.

One of the standout features for user convenience is the MVP™ (Multi-Voltage Plug) system. You no longer need to worry about finding the right power source; simply choose the adapter that fits your 120V or 240V outlet and plug it in. The machine handles the rest with Auto-Line™ technology. The included XT40 torch is designed with your comfort in mind, featuring a no-slip grip and finger contours that help you maintain steady control for precise cuts. The 20-foot torch cable gives you excellent reach, allowing you to work around large workpieces without constantly moving the machine.

The Spectrum 625 X-TREME is also smart. It features Automatic Consumable Detection, which adjusts gas pressure based on the installed consumables, and Auto-Refire™ technology that makes cutting through mesh or expanded metal a breeze by automatically controlling the pilot arc. No more hand fatigue from constantly pulling the trigger! The unit comes complete with the rugged X-CASE™, which protects your investment and keeps all your consumables, plugs, and safety gear organized in one place. With the Spectrum 625 X-TREME, you get a complete, professional-grade cutting system that is ready to go wherever the work takes you.

Additional Information
Brand:Miller
Weld Process:Plasma Cutting
Voltage:120/240 V
Amperage:40
Cutting Capacity:5/8"
Input Voltage:120V, 240V
Amperage Range:20 - 40 A
Weight:21 lb (9.5 kg)
Torch Model:XT40
Torch Length:20 ft (6.1 m)
Air Requirement:6 SCFM at 90 PSI
Generator Requirement:8000 Watts (8 kW)
Item:Plasma Cutter
Packaging Description:1 per each
Duty Cycle:N/A

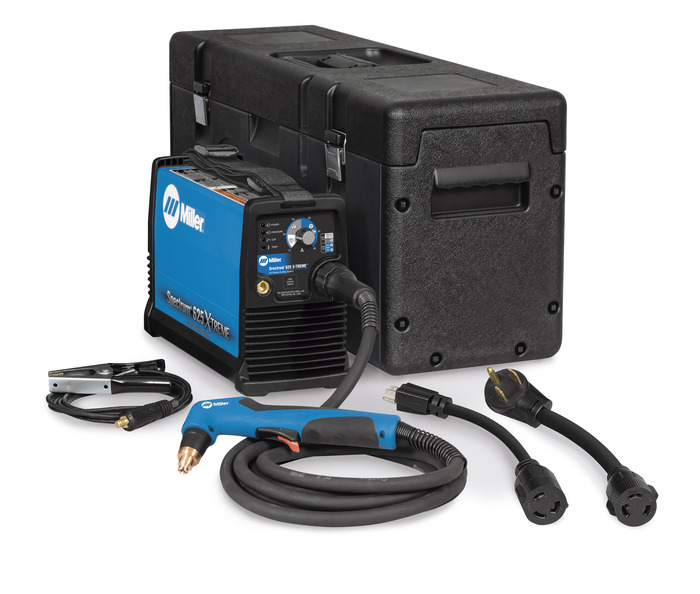

INCLUDED

  • Spectrum® 625 X-TREME™ Plasma Cutter
  • XT40 hand-held torch with 20-ft. (6.1 m) cable
  • Heavy-duty work clamp with flexible cable and quick connect
  • 12-ft. (3.7 m) power cord with 240 V L6-30P twist lock plug
  • MVP™ Adapters: 240 V, 50A (6-50P) plug and 120 V, 15 A (5-15P) plug
  • X-CASE™ protective carrying case
  • Shoulder strap
  • Consumables box with 2 electrodes, 2 tips (40 A), 1 tip (30 A), drag shield (30 A), deflector, and air fitting

APPLICATIONS

  • Industrial Maintenance and Repair
  • Light Construction
  • Prototyping and Fabrication
  • Body Shops and Automotive
  • Farm and Ranch
  • HVAC Ductwork
  • Metal Art and Sculpture

FAQ

The unit has a rated cutting capacity of 5/8 inch (15.9 mm) on mild steel at 15 inches per minute. It can sever up to 7/8 inch (22.2 mm) mild steel.

Yes, the Spectrum 625 X-TREME requires a clean, dry air supply delivering approximately 6 SCFM at 90 PSI minimum.

Yes, this model (907579001) comes standard with the heavy-duty X-CASE for protection during transport and storage.

For full output, a generator with 8000 Watts (8 kW) or higher is recommended. It can operate on smaller generators with reduced output.

Yes, using the included MVP adapter for 120V (5-15P), you can plug into standard household outlets. Output will be reduced to 27 amps.

Auto-Refire technology automatically switches the pilot arc in and out when cutting expanded metal or multiple pieces, eliminating the need to manually re-trigger the torch.

The Spectrum 625 X-TREME unit itself weighs only 21 lbs (9.5 kg), making it extremely portable.

Yes, it includes the XT40 hand-held torch with a 20-foot (6.1 m) cable.

Yes, it is capable of cutting mild steel, stainless steel, and aluminum. The cutting capacity for aluminum is approximately 3/8 inch.

It uses Miller XT40 consumables. The package includes a starter box with electrodes, 40A tips, 30A tip, drag shield, and deflector.

Yes, this model features a Quick Connect work lead with a heavy-duty clamp for easy setup and storage.

CATALOGUE & SPEC SHEETS

Spec Sheet
