08H502 - Walter HP XX 5-Inch Heavy Duty Grinding Wheel Type 27

Packaging: 25 per box
$11.40/ea $180.75/25 per box only $7.23/eaSave 37%

Usually ships within 3-5 business days

OVERVIEW

Chew Through Metal with the Walter HP XX

When you have a mountain of welds to grind down or heavy scale to remove, you don't want a wheel that glazes over or wears down in five minutes. You need a beast. The Walter HP XX Grinding Wheel (08H502) is that beast. Designed for the professional welder who demands performance, this 5-inch Type 27 wheel is built to handle the toughest grinding jobs in the shop. It features Walter's latest high-performance bonding technology, which means it stays sharp and aggressive right down to the nub.

The "XX" stands for extreme performance. This wheel is formulated to provide the longest life of any grinding wheel Walter makes. For you, that means you aren't stopping every ten minutes to spin on a new rock. You can keep your hood down and your grinder spinning. The 1/8-inch thickness gives you the durability needed for heavy edge grinding, shaping, and deburring without the fear of the wheel chipping or shattering under pressure. It is specifically tuned for both steel and stainless steel, so you don't have to worry about contaminating your stainless work with a carbon-only wheel.

Ergonomics matter when you are grinding all day. A wheel that cuts faster requires less pressure from you, saving your arms and back from fatigue. The coarse 24-grit composition of the HP XX rips through material, allowing the tool to do the work. Whether you are beveling pipe for a root pass or smoothing out a cap, this wheel gives you the control and power you need to produce a professional finish in record time. Upgrade your angle grinder with the HP XX and feel the difference premium abrasives make.

Why Welders Choose HP XX

  • Maximum Bite: Aggressive grain structure removes metal fast.
  • Less Downtime: Lasts longer than standard wheels, keeping you working.
  • Smooth Operation: Balanced manufacturing reduces vibration and operator fatigue.
  • Multi-Metal Use: Safe for use on stainless steel and mild steel.
Additional Information
Brand:Walter Surface Technologies
Diameter:5"
Thickness:0.125"
Arbor (in):7/8"
Grit:24
Used To Grind:Steel or Stainless
Item:Grinder
Wheel Type:Type 27
Grade:A-24-ASXX
Series:HP XX
Max RPM:12,250
Bond Type:Resinoid Reinforced
Packaging Description:25 per box

INCLUDED

  • 1x Walter HP XX Type 27 Grinding Wheel (5" x 1/8" x 7/8")

APPLICATIONS

  • Heavy-duty grinding of steel and stainless steel
  • Weld seam removal and preparation
  • Deburring cut edges and flame-cut parts
  • Shaping and beveling metal prior to welding
  • General fabrication and structural steel work
  • Shipbuilding and heavy equipment repair

FAQ

The Walter HP XX (08H502) is designed for use on both steel and stainless steel. It is formulated to prevent contamination on stainless while maintaining durability on mild steel.

This 5-inch wheel is typically rated for a maximum speed of 12,250 RPM. Always verify the RPM rating printed on the wheel matches or exceeds your grinder's no-load speed.

Type 27 refers to a depressed center wheel profile. This shape allows the locking nut to sit within the wheel's center, enabling grinding at flat angles (typically 15-30 degrees) without the nut interfering with the workpiece.

The HP XX series incorporates Walter's latest bonding technology to offer the longest life in their lineup. It is designed to provide the lowest total cost of grinding by balancing aggressive removal with extreme durability.

This wheel has a standard 7/8-inch arbor hole, which fits most standard 4.5-inch and 5-inch angle grinders.

No, this is a grinding wheel with a 1/8-inch thickness. It is designed for surface grinding and stock removal. For cutting, you should use a Type 1 or Type 27 cutting wheel (typically 0.045" thick).

No, this is a bonded abrasive grinding wheel and does not require a backing pad. It mounts directly to the angle grinder using the grinder's flange and lock nut.

The 'A24' in the spec indicates a 24-grit aluminum oxide grain, which is a coarse grit designed for rapid material removal.

CATALOGUE & SPEC SHEETS

Spec Sheet

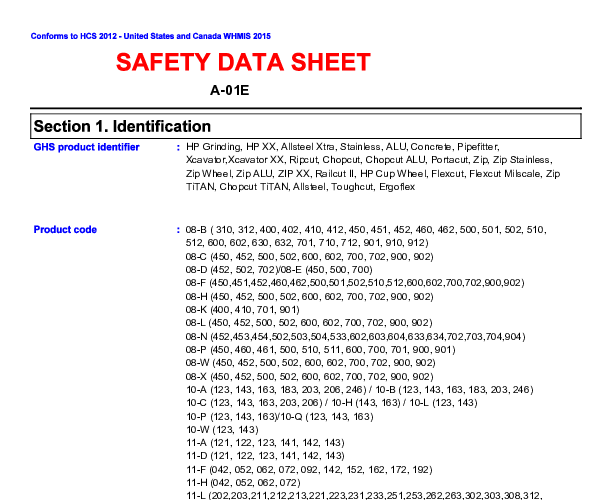

Safety Data Sheet
