951512 - Miller Filtair MWX-S Mobile Fume Extractor, 12ft Arm, Self-Cleaning

Packaging: 1 PER EA
$28,958.07/EA $20,390.94/1 PER EA only $20,390.94/EASave 30%

Usually ships within 3-5 business days

OVERVIEW

Breathe Easier with the Miller Filtair MWX-S

Welding produces hazardous fumes that can pose serious long-term health risks, but the Miller Filtair MWX-S (951512) is here to help you breathe easier. Designed specifically for professional welders, this mobile fume extractor combines powerful suction with ease of use, ensuring that smoke and particulates are removed from your breathing zone before they can do harm. Whether you are working with stainless steel, aluminum, or mild steel, the MWX-S provides the protection you need to focus on your weld.

One of the biggest hassles with fume extractors is clogged filters that kill suction. The MWX-S solves this with its innovative self-cleaning button. When the gauge shows the filter is getting dirty, you simply press a button to run a quick one-minute cleaning cycle. This blasts the dust off the filter and into a collection drawer, restoring suction power without you having to get your hands dirty or stop working to swap out a filter. This means you get consistent performance and spend less money on replacement filters over time.

Positioning the hood is effortless thanks to the 12-foot extraction arm. It is balanced to stay exactly where you put it, and the large bellmouth hood captures fumes from a greater distance, so you don't have to constantly readjust it while you weld. The unit runs on standard 115V power, so you can plug it in almost anywhere in the shop. With its rugged wheels, you can roll it right up to your workpiece, lock the casters, and get to work knowing you have the best protection in the industry backing you up.

Additional Information
Brand:Miller
Item:Fume Extractor
Packaging Description:1-of-each
Air Flow:875 CFM
Filter Rating:MERV 15
Arm Length:12 ft
Input Voltage:115 V
Motor Power:1 HP
Sound Level:70 dBA
Weight:136 kg
Filter Media Area:490 sq ft
Filtration Technology:FilTek XL Nanofiber

INCLUDED

  • Mobile Fume Extractor Unit (115 V)
  • 12 ft. Extraction Arm (8-inch Diameter)
  • FilTek XL Filter (Pre-installed)
  • 17 ft. Power Cord
  • Particulate Disposal Drawer

APPLICATIONS

  • Industrial Fabrication Shops
  • Manufacturing Plants
  • Maintenance and Repair Operations (MRO)
  • Welding Training Centers and Schools
  • Heavy Equipment Repair

FAQ

The self-cleaning mechanism uses a pulse of reverse airflow to dislodge weld fume particulate from the surface of the FilTek XL filter. The dislodged particles fall into a collection drawer for easy disposal.

The unit uses a FilTek XL filter with a MERV 15 rating, capable of filtering up to 95% of weld fume particulates.

Yes, a dry compressed air supply is required to operate the self-cleaning pulse mechanism.

This specific package (951512) comes with a 12-foot extraction arm.

The unit operates on standard 115V single-phase power.

There is an easy-to-read filter pressure gauge on the front panel that indicates when the pressure drop increases, signaling that it is time to run the cleaning cycle.

Yes, it features large rear wheels and lockable front swivel casters, allowing it to be easily moved around the shop.

Yes, the MERV 15 rating is effective for capturing the finer particulates associated with stainless steel welding fumes.

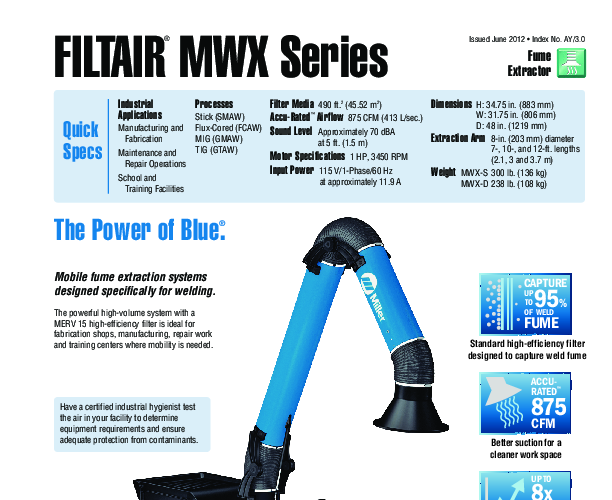

CATALOGUE & SPEC SHEETS

Spec Sheet
