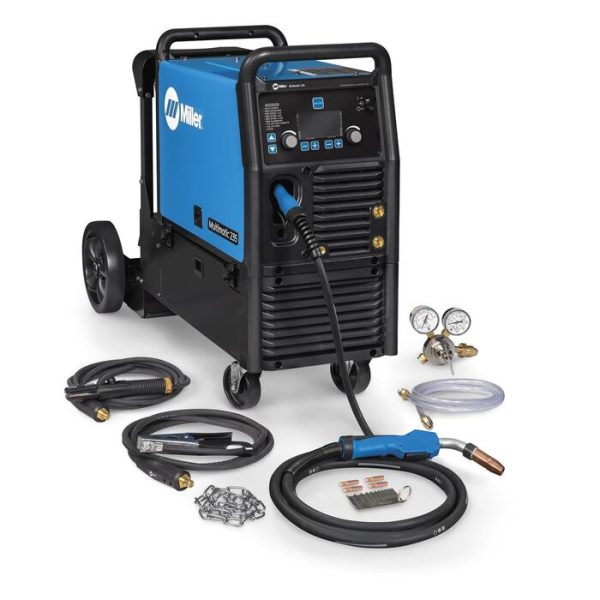

Take your welding capabilities to the next level with the Miller Multimatic 235, an all-in-one powerhouse that puts MIG, TIG, and Stick welding at your fingertips. Whether you are fabricating in the shop or performing maintenance in the field, this welder is built to adapt to your needs. With a robust 235-amp output and a user-friendly design, it bridges the gap between ease of use for beginners and the advanced control required by seasoned professionals.

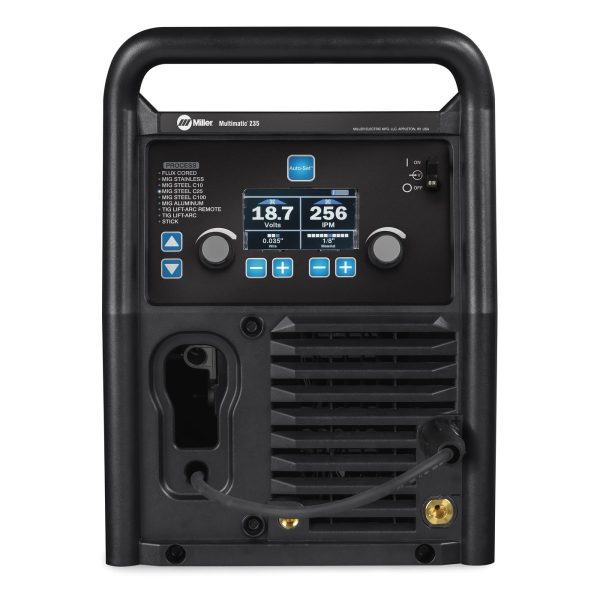

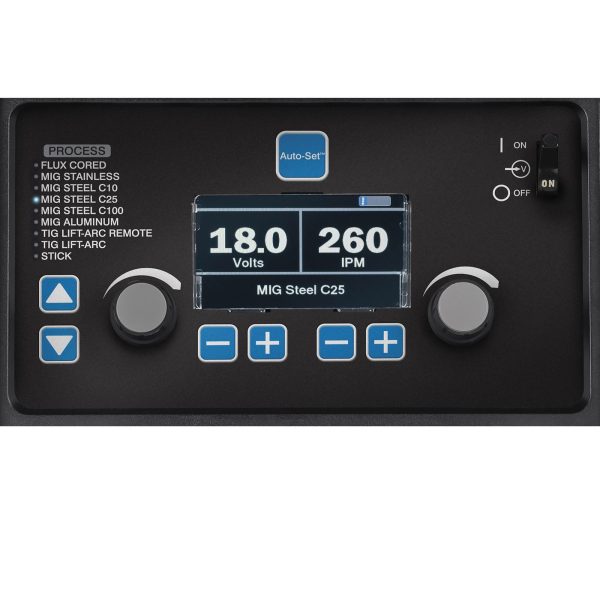

Setting up a multiprocess welder has never been easier. The Multimatic 235 features a bright 4.3-inch color LCD screen that guides you through the setup process. With Auto-Set Elite, you simply input your wire size and material thickness, and the machine sets the optimal parameters for you. This means less time fiddling with knobs and more time laying down high-quality beads. For those switching between steel and aluminum, the Gun-On-Demand feature is a game-changer, automatically recalling settings for your spool gun the moment you pull the trigger.

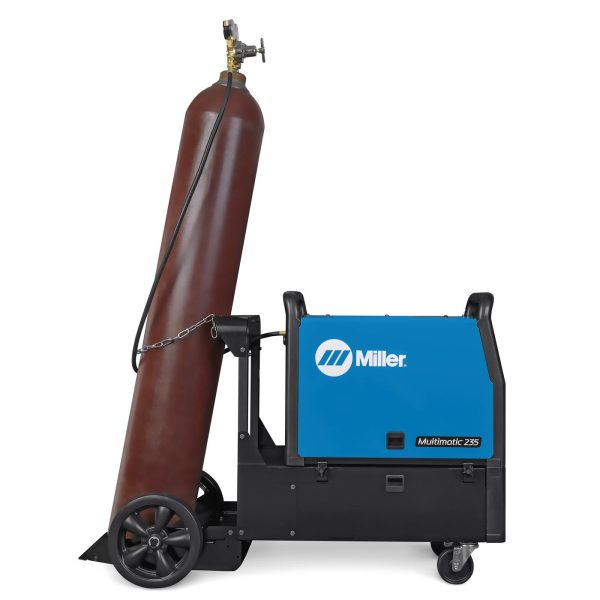

Mobility is key for many welders, and the Multimatic 235 delivers with its exclusive EZ-Latch Running Gear. This isn't just a cart; it's a rapid-transport system. Need to put the welder in your truck? Just unlatch the machine from the cart and lift the lightweight 63-lb unit separately. No tools required, and no heavy lifting of the entire assembly. Once you're on site, the machine reconnects just as easily, keeping your gas cylinder and accessories organized and ready to roll.

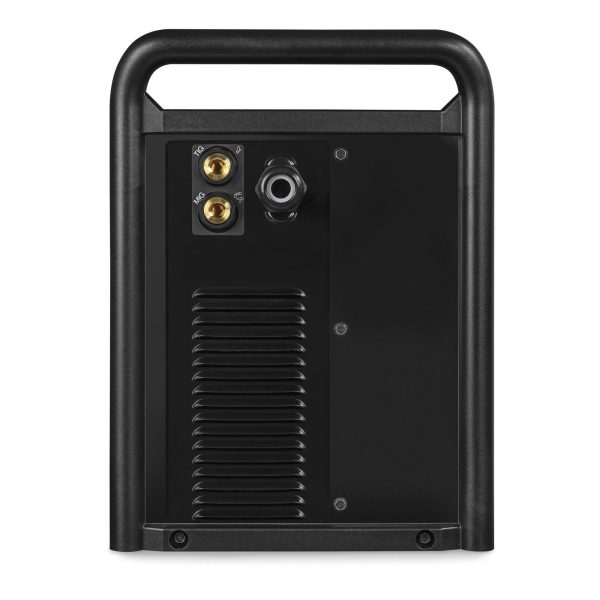

Backed by Miller's True Blue 3-Year Warranty, the Multimatic 235 is constructed to withstand industrial environments. It includes the rugged MDX-250 MIG gun with AccuLock consumables, designed to reduce wire feeding issues and operator fatigue. From the dual gas connections that let you keep MIG and TIG gases hooked up simultaneously, to the generator compatibility for remote work, every detail is designed to keep you welding efficiently.
| Additional Information |
|---|
| Brand:Miller |
| Voltage:208/230/240 V |
| Phase:1-Phase |
| Amperage:235 |
| Weld Process:Multi-Process |
| Duty Cycle:60% |
| Input Hz:50/60 Hz |
| Process Type:Multi-Process |
| Input Voltage:208 V, 220 V, 230 V, 240 V |
| Amperage Range:20 A - 235 A |
| Wire Feed Speed Range:60 - 600 IPM |
| Max Open Circuit Voltage:54 VDC |
| Portability:EZ-Latch Running Gear, Handle |
| Warranty Period:3 Years |
| Compatible Wire Sizes:0.023", 0.030", 0.035", 0.045" |
| Item:Welding Machine |
| Packaging Description:1 of each |
Used this product on the job? Tell other welders how it held up.
MiG welding
You can't tack any metal thicker than 1/8 machine starts off at 60IPM and you can't turn it off or adjusted it and have to wait 5 seconds until it goes to the speed that you have set for wire speed
Miller responded
Merchant Response Thank you for reaching out and sharing your feedback. We'll be passing your comments on to the Multimatic 235 Multiprocess Team. Don’t hesitate to contact us for any reason at 920-734-9821.
Smooth operation
I've been a welder for 25+years and I have always loved Miller vs. Any other manufacturers. I like Lincoln for diesel welders and 600-1000 amp for sub arc applications. ESAB makes a great wire feeder and until now they were my favorite mig/Flux Core machine. I currently have a Miller 235 multi-process machine. I've been obsessed with the syncrowave technology and I think there are no comparisons. When i switched from my Lincoln 200a mig welder to this and used it for Flux Core it was a transcending experience. Smoothest hot start ever and exquisite operation throughout each pass. Nothing else comes close. Haven't used TIG yet or spool gun. I couldn't afford them but I will review when I do. Thanks Miller. Never let me down
The Multimatic 235 Multiprocess welder is good for the cost
The 235 Multiprocess welder is very good. Everything works well. The fan is very constant and a bit noisy. It does not have the pulse option. The power cord comes with a plug and that is nice. It has a smaller screen than the 255. It works fine, but if you desire much improvement spend $1000 more for the 255. I chose Miller over all the other welders on the market because of its support and technology, even though many other welders may be 1/2 or better the cost. I prefer to avoid the frustrations of dealing with cheap welder issues that are likely to surface.
I would buy these again.
I have 5 new machines for my high school classroom, the class room loves them.
Great Welder, But you pay for the Blue
Great welder, but Holy Moses is the MDX stuff expensive. For the price, this welder should come with the .023 kit as well.
Multimatic 235
I haven't used the stick yet but the Mig is one very smooth operation. I've used the Auto Set and haven't needed to adjust yet. Very impressed with this machine. I have a hay farm and will be using the stick in the very near future working on some of my implements. A very versatile machine
Great product.
I love this Welder.
Yes i would highly recommend thsi
Works excellent for welding steel stainless and with a spoolgun to weld aluminum
I would buy this product again.
This welder will be used in our Auto Shop Class and was so easy to set up. After we set it up we tested it on some scrap metal it welds so smooth. I recommend it for anyone looking for a vestal welder that can do Mig, Tig and Stick welding.
I would buy this again
Great welder I like the auto set feature
